    Default Euzebox build

    Strong hints, and the leaving out of strategic printouts on the run up to Christmas saw Santa drop a Euzebox in my stocking.

    A Euzebox is the European variant of the American Uzebox project.
    "The Uzebox is a retro-minimalist 8-bit open source game console." and when I chanced upon it I thought I would love to have a go at building my own Games Console from scratch.

    I finally got an evening when I set aside a bit of time to put it together. It only took a couple of hours over one evening.

    Opening the pack gives a couple of detailed spec sheets, one PCB and 3 bags if components.

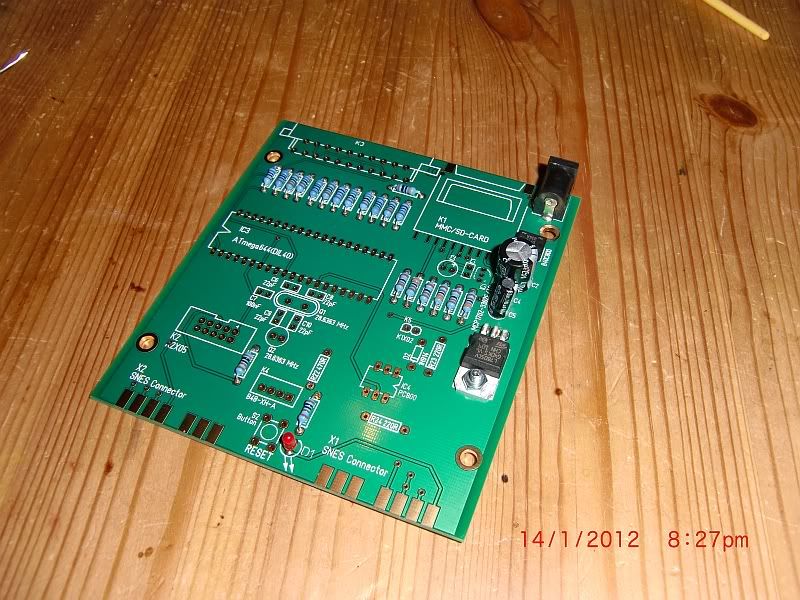

    There are a lot of nice easy through hole parts to solder in, and the board is really well spaced out and easy to work on.

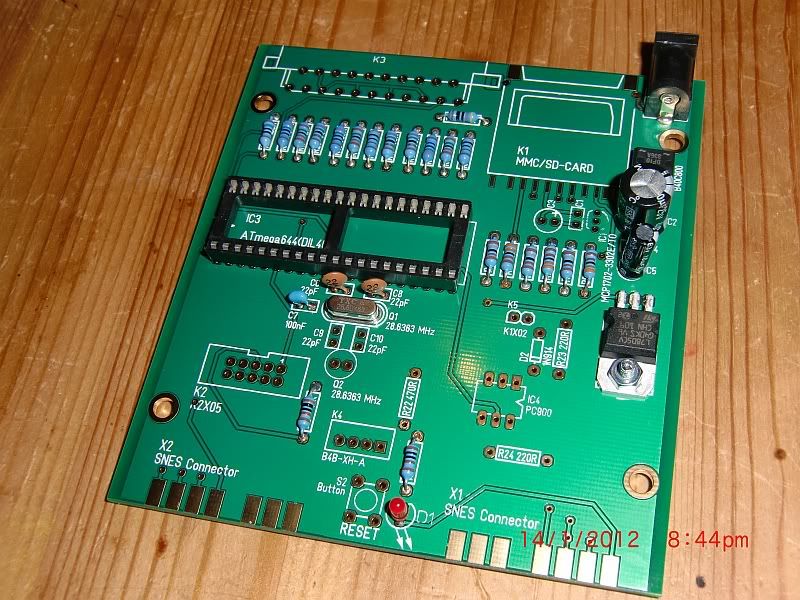

    I built it in stages, first all the resistors and Power supply..

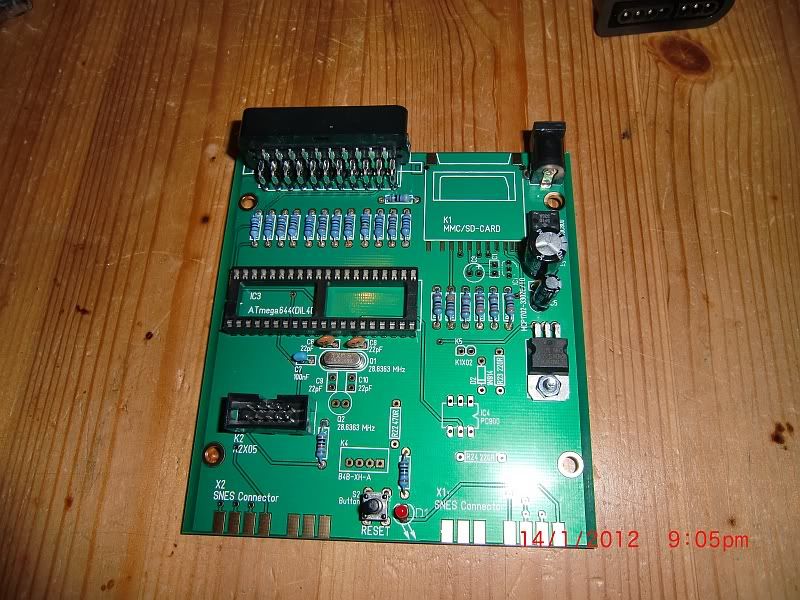

    Next was the IC socket, caps and oscillator...



    SCART socket, reset switch and ISP Header next...



    Next was the only bit of surface mount soldering for the SD Card socket, which is much more straightforward than it would appear...



    Finally, the SNES sockets at the front. Plenty of solder here to ensure a good strong bond able to resist the pull and push of regular use...

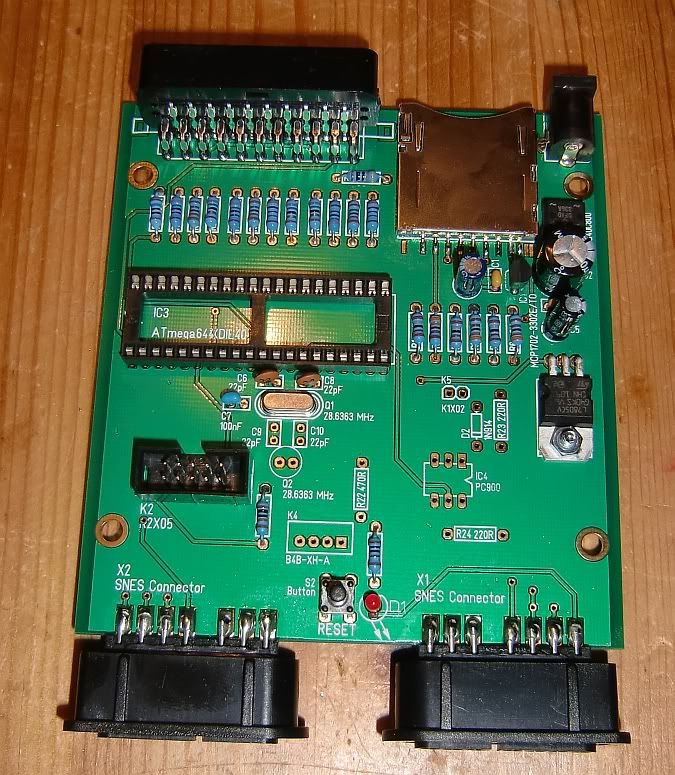

    A shot of the base once all the components were welded in. Looks good to me, lets test her out...

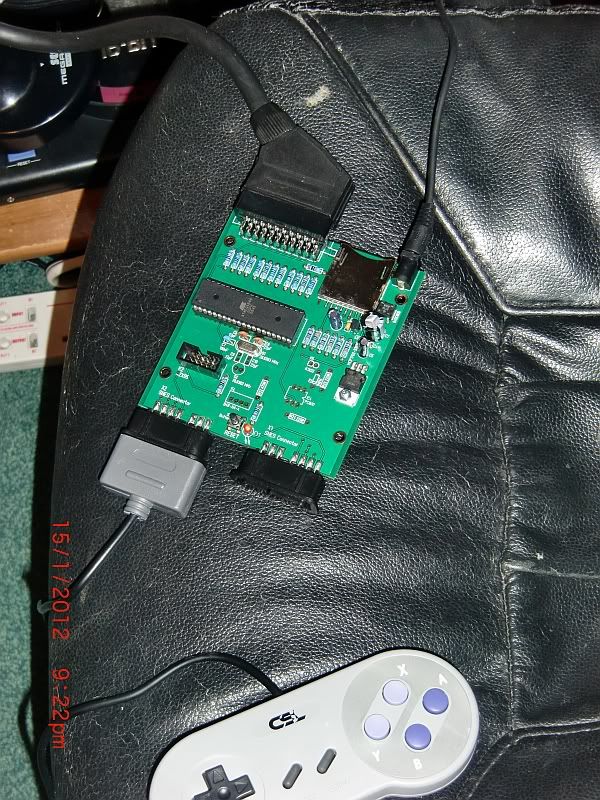

    A power on test utilising a SNES psu (9v 1a), unconnected to the TV and left for a few minutes to check for unexpected behaviour. The LED is lit, as it should be, and there is no evidence of any shorts, heat or smoke.

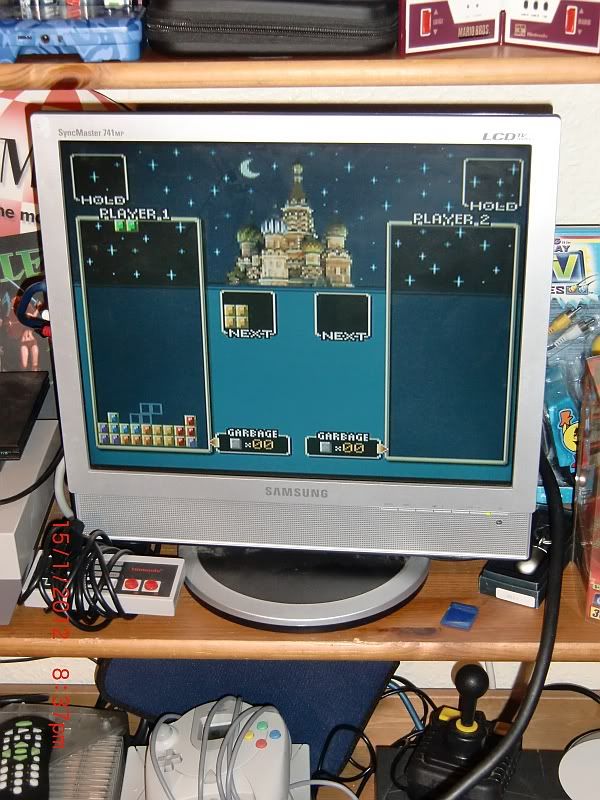

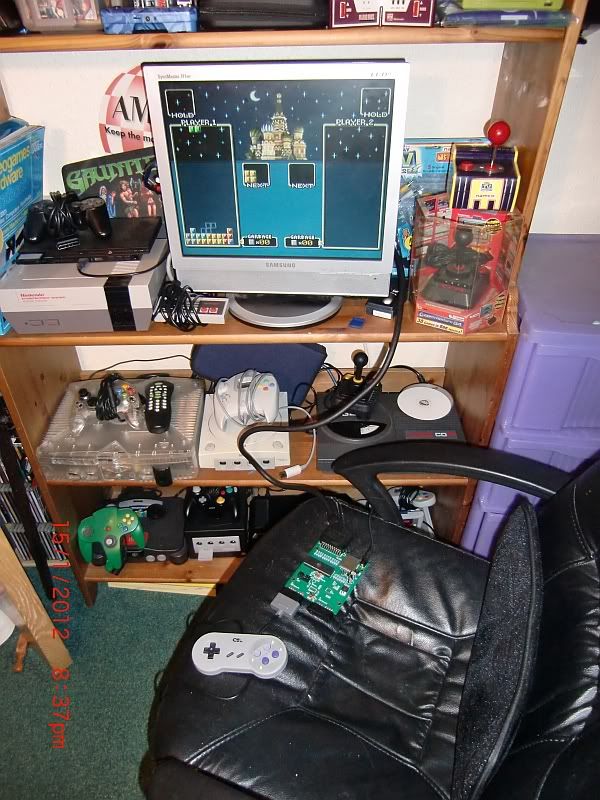

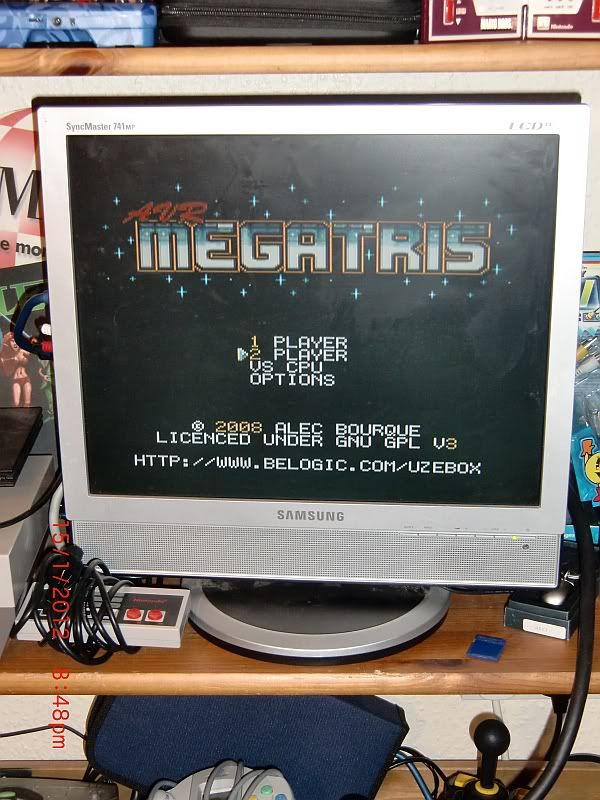

    Plugging it in to the TV and she immediately came up with the startup splash screen for the built in Tetris clone.



    It's a fun version actually, and graphically much better in real life than I was expecting TBH.




    I really enjoyed building this, and I'm looking forward to putting a few more of the games available for it on an SD card and putting it through it's paces.
    I'll be finding a nice clear perspex casing for this, so expect to see it at future Amibay events.


  2. #2
    Amibayer!
    Staff Moderator
    johnim's Avatar
    Join Date
    May 2010
    Country
    England
    Region:
    birmingham
    Age
    38
    Posts
    10,782
    Feedback
    140 (100%)

    Default

    very nice phil and thanks for sharing
    A1200T 1d4:blizzard 1260/50/192mb/scsi kit:mediator 1200:radeon 9250:sb128:100mb net:spider usb clone:fastata-iv:amiga to ps2 mouse:80gb hd:zip100 ide:a4000 keyboard
    A1200D 1d4:blizzard1230mk4/50/64mb:indy mk ii:fastata mk ii:40gb*A1200 rev 2b*2 x A1200 1d4*A1200 1b*A600 2mb 4gb*A500

    sfs cf guide http://www.amibay.com/showthread.php?t=19953 cwb3.9 guide http://www.amibay.com/showthread.php?t=20315 mediator drivers http://www.amibay.com/showthread.php?t=11993 p96 newres guide(radeon install) http://www.amibay.com/showthread.php...905#post325905

  3. #3
    Staff Moderator keropi's Avatar
    Join Date
    Dec 2007
    Country
    Greece
    Region:
    Ioannina
    Age
    35
    Posts
    5,939
    Feedback
    99 (100%)

    Default

    nice one!!!!!
    I would get one to build too just for the fun of it IF it had some other video-output method... I'm not gonna lie: hdmi is the way to go, scart is just poorly implemented in most lcd tv's sadly
    Aacheron and slk486 are my heroes
    A1200D mfilos ed. : ACA 1231/42 , Indivision MK2 , IDEfix Express , Subway , PicoPSU 120w custom 3.9 ROM/OS

  4. #4
    Bring out yer Dead! VIP Zetr0's Avatar
    Join Date
    Nov 2007
    Country
    UK
    Region:
    Norfolk
    Age
    39
    Posts
    10,736
    Feedback
    129 (100%)

    Default

    Now that looks like a lot of fun indeed!
    Flux Mastah' Zee
    50 L337 1'M W1R3FR4M3

  5. #5
    Micra Man Mega AmiMod
    Administrator
    r0jaws's Avatar
    Join Date
    Jan 2008
    Country
    UK
    Region:
    Boston, Lincolnshire
    Age
    39
    Posts
    7,252
    Feedback
    138 (100%)

    Default

    I have to agree, seeing the nightmare that zetr0 has to put up with with his TV.
    I've been very lucky with the LCDs in my house so far, but definitely HMDI is the way forward.
    The American one has SVideo and composite NTSC outputs though, just a thought.


  6. #6

    Default EUzebox V01-05

    Hi,

    a new version 01-05 of the EUzebox is available now. Thats new:

    - integrated prototyping area
    - extension socket (UART, ports for Uzetherm, GND, 3.3V, 5V)
    - 6 pole pin header for ISP connector
    - rated break point and connector for external power switch
    - pre programmed with game loader 0.4.2
    - BUGFIX: connection between left and right audio channel at SCART connector
    - BUGFIX: integrated sync patch
    - BUGFIX: +5V at pin 6 (VCC) of PC900
    - BUGFIX: additional holes for scart connector
    - BUGFIX: GND connection at pin 31 of ATMEGA
    - BUGFIX: +5V at pin GND connection at pins 30 and 32 of ATMEGA
    - BUGFIX: bigger space between solder pads and ground planes

    Here are some pictures of this new version:



    Cheers

    -Harty

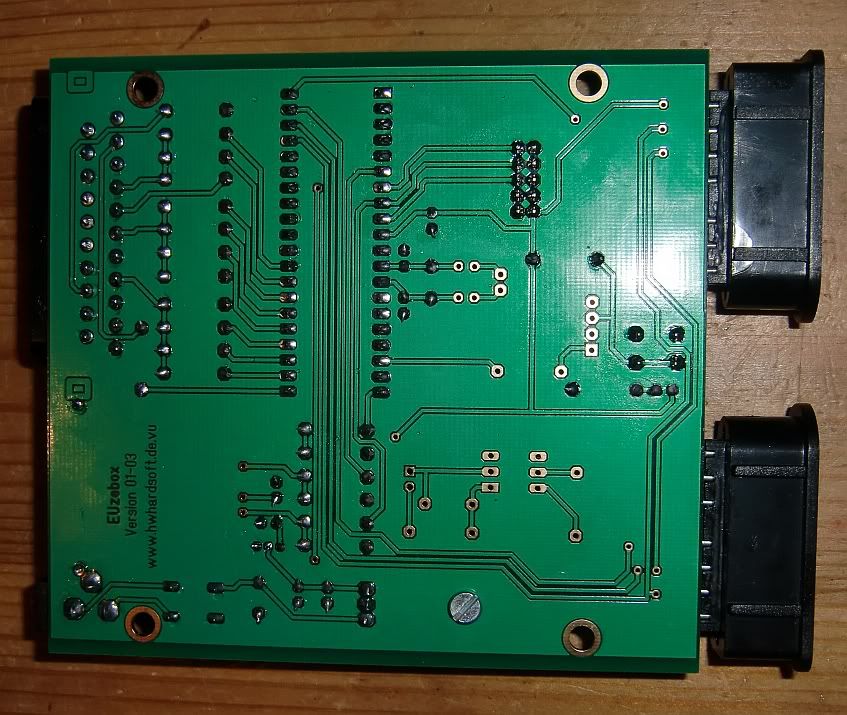

    Attached Thumbnails Attached Thumbnails Euzebox_front.jpg   EUzebox_back.jpg   EUzebox_PCB_small.jpg
