    Allright, as some of you already know i got lucky in obtaining this beauty from dibs. http://www.amibay.com/showthread.php?t=5222
    Now, this card needs some careful work to be done. But since it appears that your daily (or nightly should i say) thirst for hw prOn is not yet quenched, i figured i'd present the item...

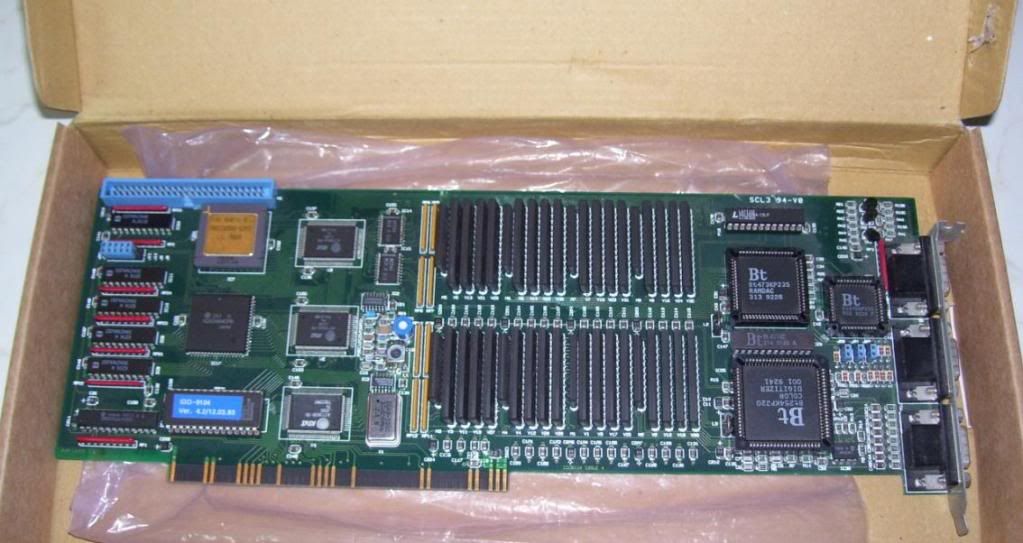

    Well, here she is, in all her green glory!



    The card arrived in the box you see, which was inside a parcel, which was inside another parcel, which was inside a poly cover, which was surrounded by other cardboard boxes, and the whole thing inside a much bigger box!
    That goes to say that dibs has done a great job to protect it.
    So, here's the "enemy" i have to face:

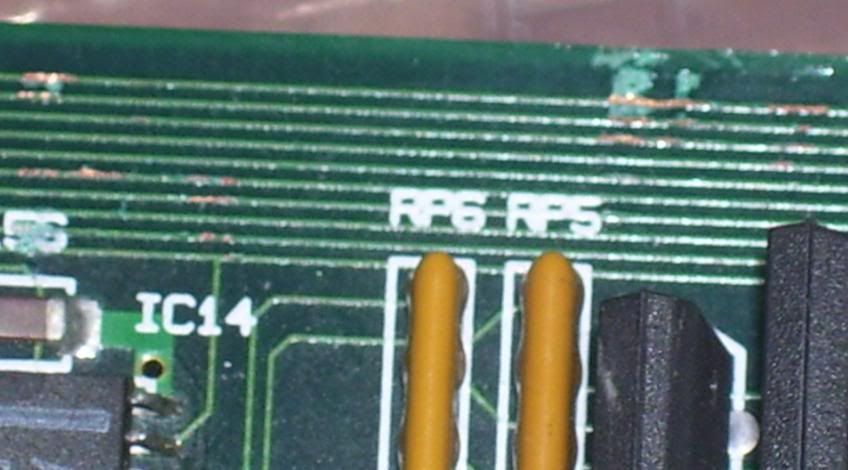

    That's at the front, just above the RAM chips, probably nothing to worry about, but seems to require a continuity test here and there, and some cleanup.


    And here's the big part.

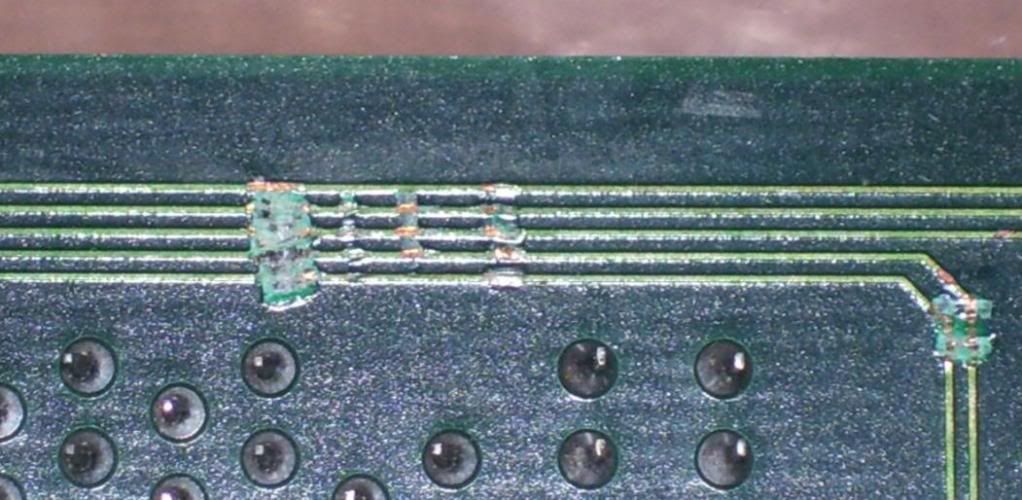

    And a closer shot of the traces. I only wish i could resize them pics here, but the resizing tool doesn't seem to listen....




    Well, that's all for now. Once the repairs are finished i'll explain what i intend to try using this card for... Stay tuned!!
