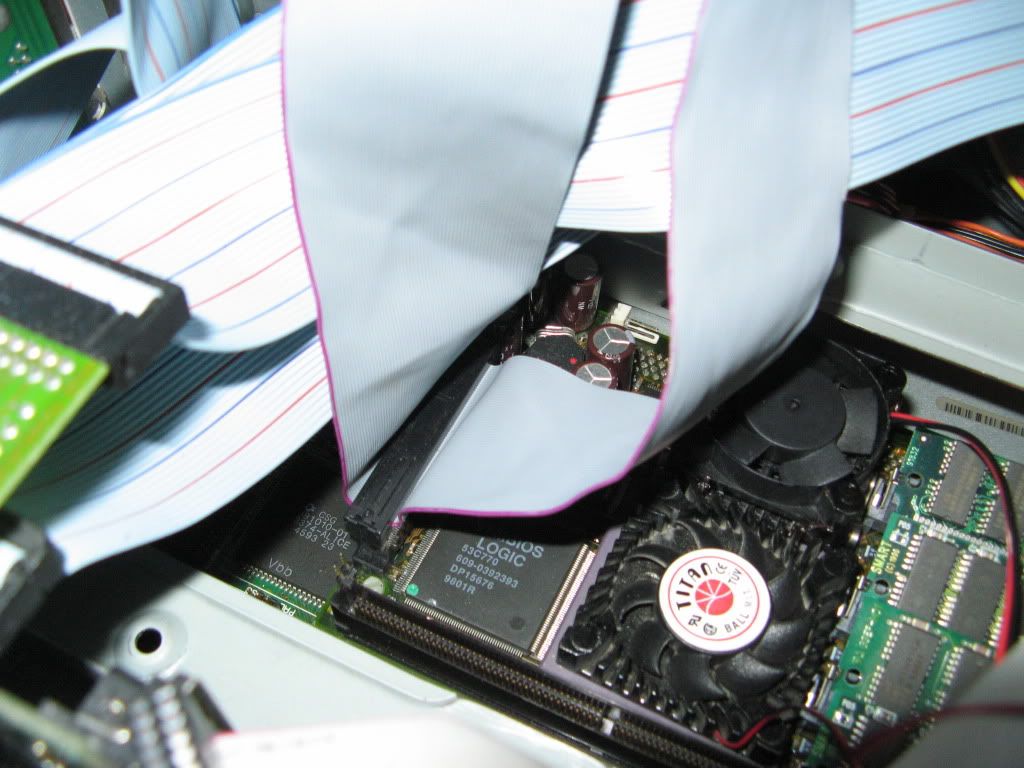

Doing a little bit of testing tonight with SCSI-IDE off the CyberSCSI, once I messed with the settings a little I'm getting some pretty decent read speeds :cool:
http://i294.photobucket.com/albums/m...e/IMG_2048.jpg
http://i294.photobucket.com/albums/m...e/IMG_2049.jpg

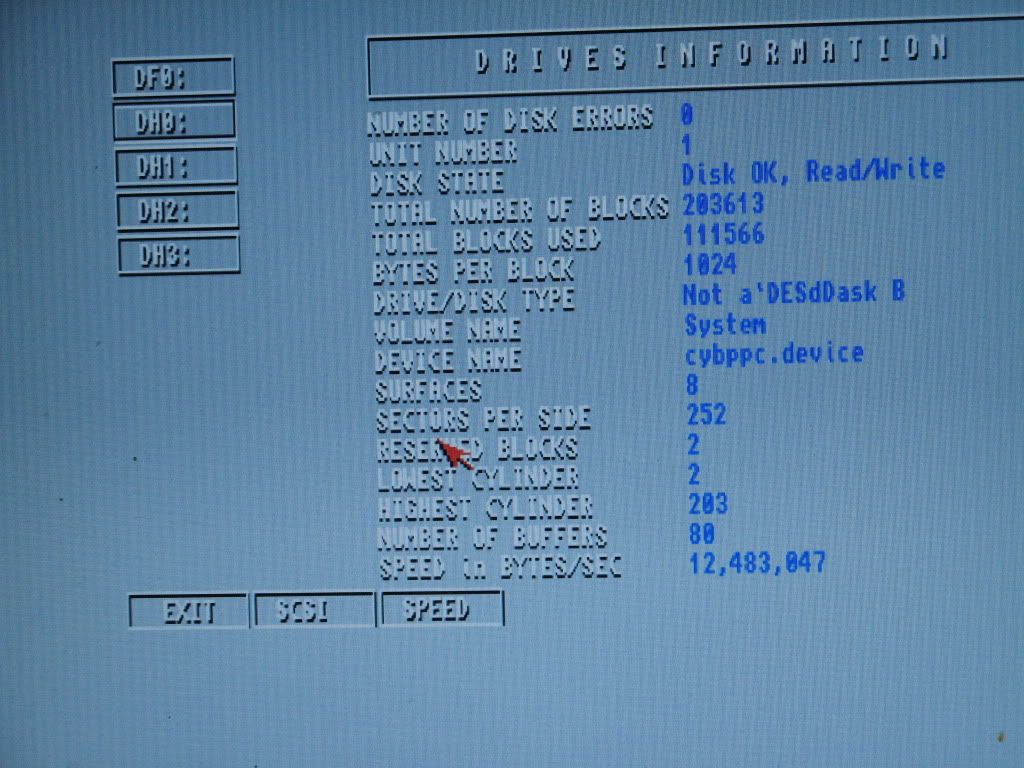

http://i294.photobucket.com/albums/m...e/IMG_2051.jpg
nice speed. :)
Give PFS3 Direct SCSI a go. You may be pleasantly suprised.
Looks good Steve :-D
Can't wait to get me one 4000T (and that maybe sooner than you think :shhh: ).
cool stuff and great drooling pics
thanks fitzy-baby:thumbsup:
Really great work here, very impressed. +100 points:D
Quote:
Originally Posted by D.B
Quote:
Originally Posted by Buzzfuzz
Quote:
Originally Posted by Justin
Thanks guys! :thumbsup:Quote:
Originally Posted by Elron Nightshade
I'm having the motherboard re-capped so will be able to do a photo shoot of the re-build soon :cool:
As I mentioned I've been having a few stability issues so decided to have the motherboard re-capped by Hikey, here is a little shot of the naked board before she gets sent :ninja:

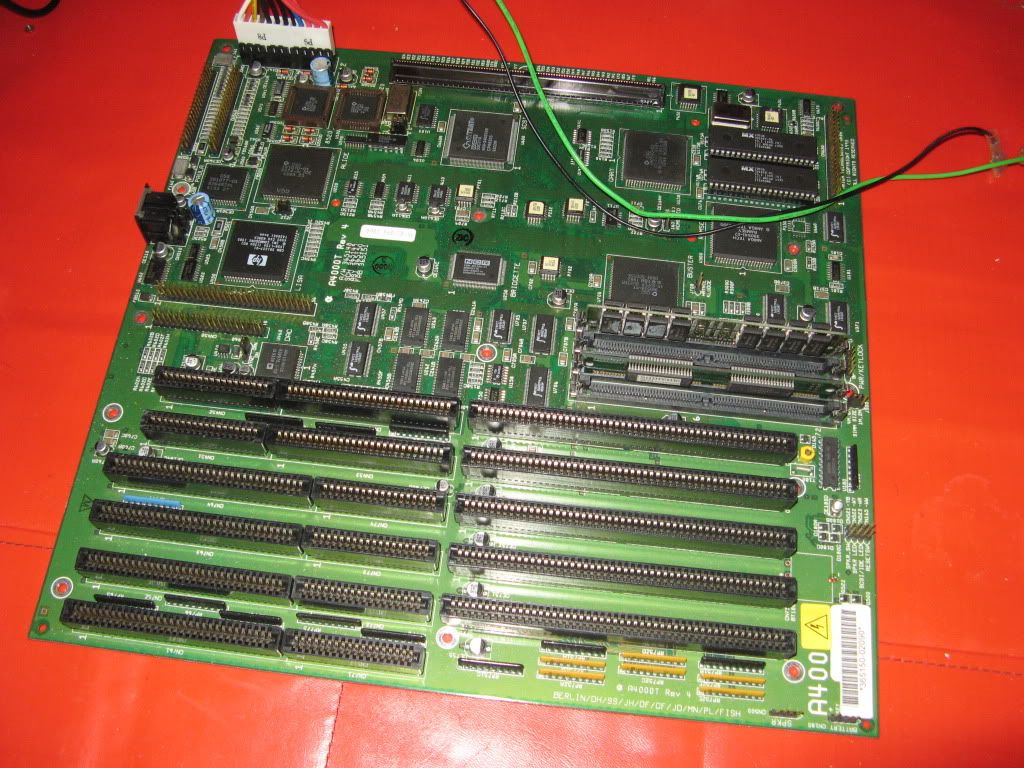

http://i294.photobucket.com/albums/m...e/IMG_2073.jpg
A beautiful one :)
So my A4000T Mobo is with Hikey and he confims the u22f Caps have leaked on the main board and Audio board so he will be changing them for me, hopefully this solves my issues.
Just tested my CSPPC with PicassoIV and Deneb on A4000D Test bed setup with 350w ATX PSU + Adapter I got from Juvvy today and all that kit is working great so I guess the A4kT mobo is the issue.
I'm looking forward to testing the board with the new caps :)
Pics to follow on the rebuild :thumbsup:
I need to clean up this mess now! :P
Nice A4000T, fitzsteve. Really.
CSPPC+CVPPC and Picasso with all options (concierto is so hard to find !).
Congratulations ! :thumbsup:
I have one A4000T too and I sloooOOOooowly going to do something similar but I'm always amazed by the speed of your projects and all the tests you do and share with us... Very helpful, mate. :bowdown:
Another thing I like is the smart "gadgets" you always manage to find to make your projects absolutely unique. Killing details. Here I've noticed a very smart combo DVD with card readers, etc. Are you going to make it work too ???
Hi My friend,Quote:
Originally Posted by Rakeim132
Thanks for the kind words :thumbsup:
Its a CDRW with built in USB card reader, CD is hooked up to my X-Surf IDE port with IDEFix software so is reading CD's just fine. I have a small adapter so that I can use the Card reader on the internal USB port on the Deneb, it is all setup and working too. I can just pop in an SD or CF and they mount with SFS or FAT partitions :cool:
Hikey has fully recapped my Motherboard and he says its 100% stable so hopefully when it returns I will be able to get the machine working exactly as I want it :)
Steve.
Oh man ... what a nice Setup you got! :D
I want one too ;)
Regards
Pedro Henriques
Thanks for the details.
Yeah, these motherboards are piece of jewellery... I'll probably ask Cosmos to do the caps of mine too some day... :D
Did you buy the CDRW brand new ? I saw it from IOMEGA but I believe it's a model that went out in 2004... That's perhaps more recent than the A4000 but it's harder to find. :p
Looking forward to the results of OS4.1 installation. I just received my copy from Amigakit but the A4000 is stored a container for at least 2 months... I'm so impatient to play with it again !
Hey guys,
As promised I've taken pics of the rebuild today, sadly after all this my issue remains :(
I had to wiggle the PicassoIV to get any booting and later removed it. Now although it runs I have to keep reseating the Deneb, I'm going to clean all the contacts again with IPA and after that I think I'll give up with this project, it's just too much of a headache and not practical after the case is back together to reseat cards whenever I want to use it.
The A4000T Motherboard worked perfect on Hikey's setup so I have some other issue here amoungst my parts that stops all the zorro cards from being picked up at every boot. All the parts seem to work individually but when all installed together it's trouble time (and of course I have tested another PSU and also on my A4000D Motherboard - the issue remains)

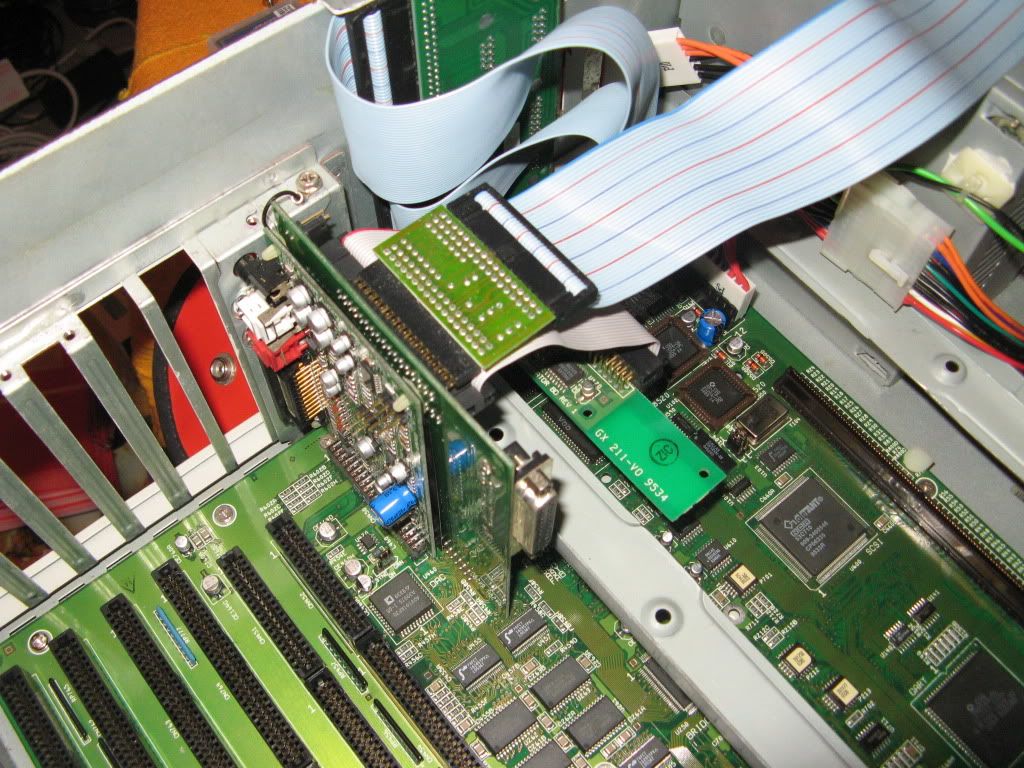

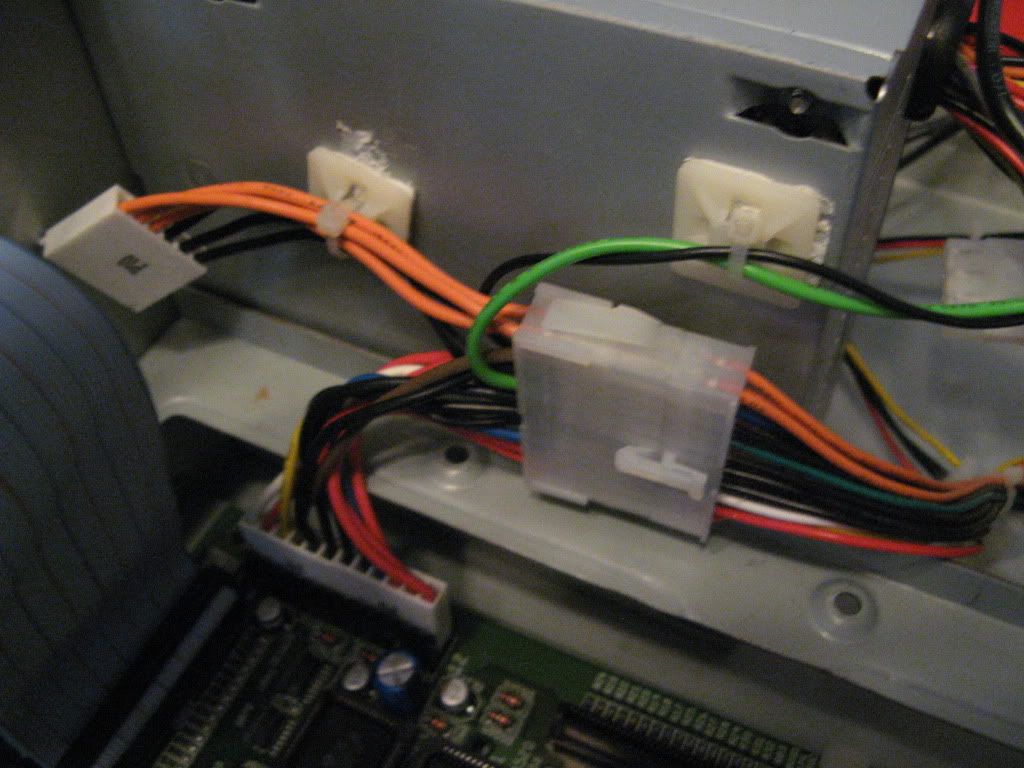

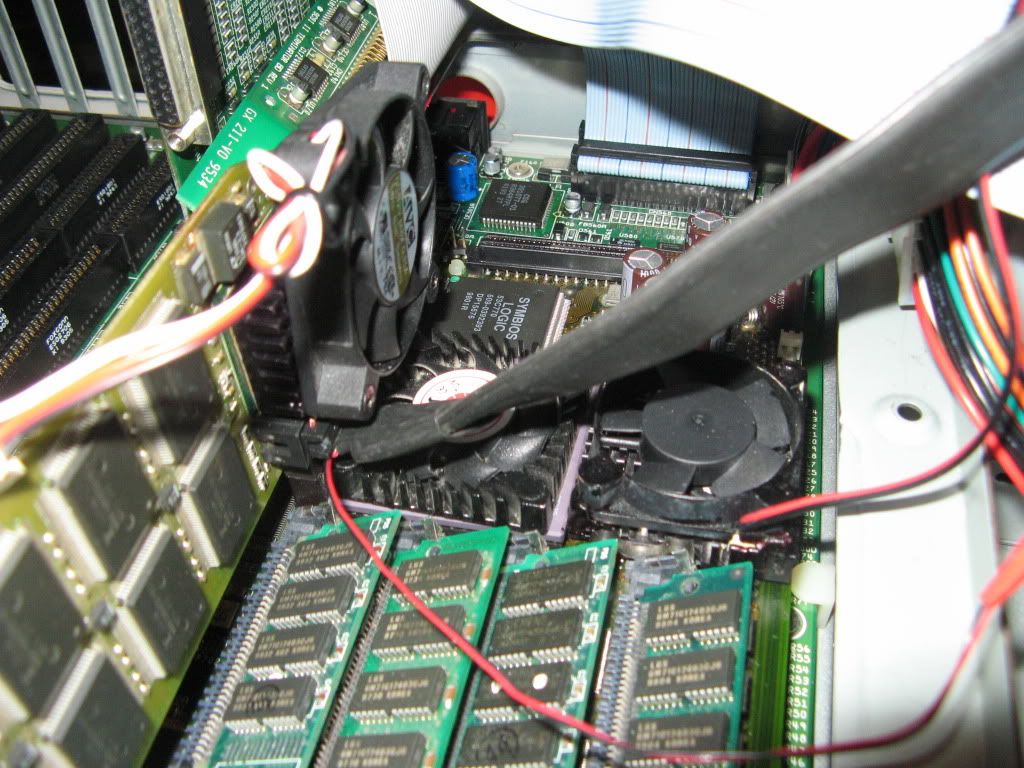

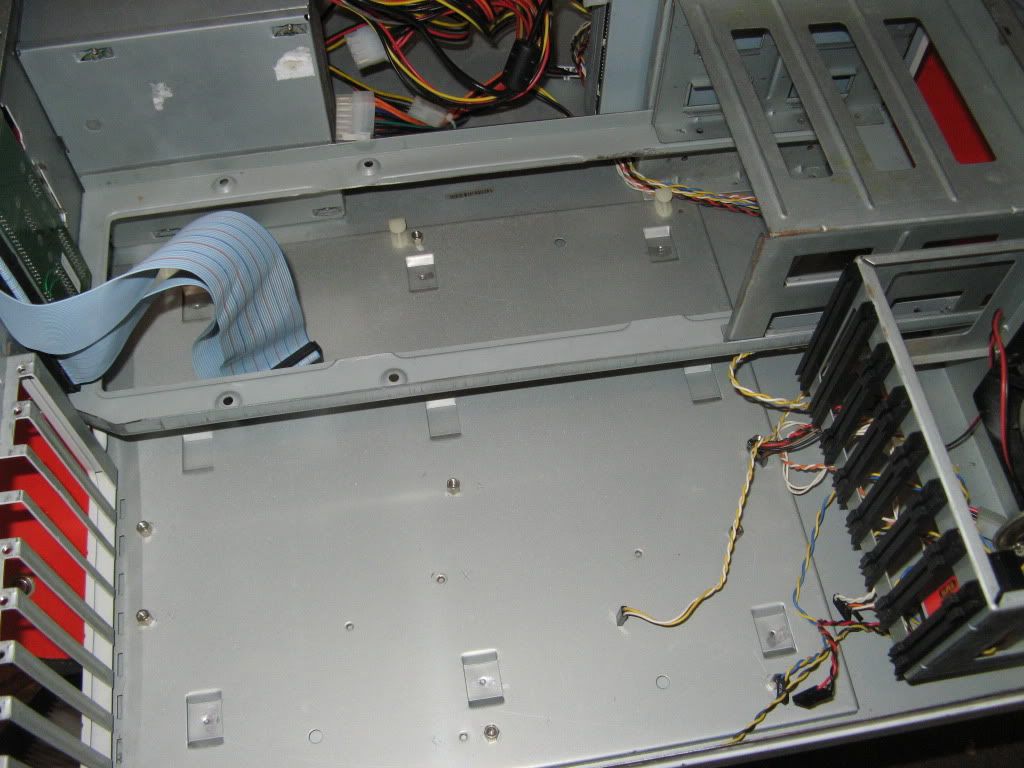

So anyway here is the photoshoot:
http://i294.photobucket.com/albums/m...e/IMG_2124.jpg
http://i294.photobucket.com/albums/m...e/IMG_2125.jpg
http://i294.photobucket.com/albums/m...e/IMG_2126.jpg

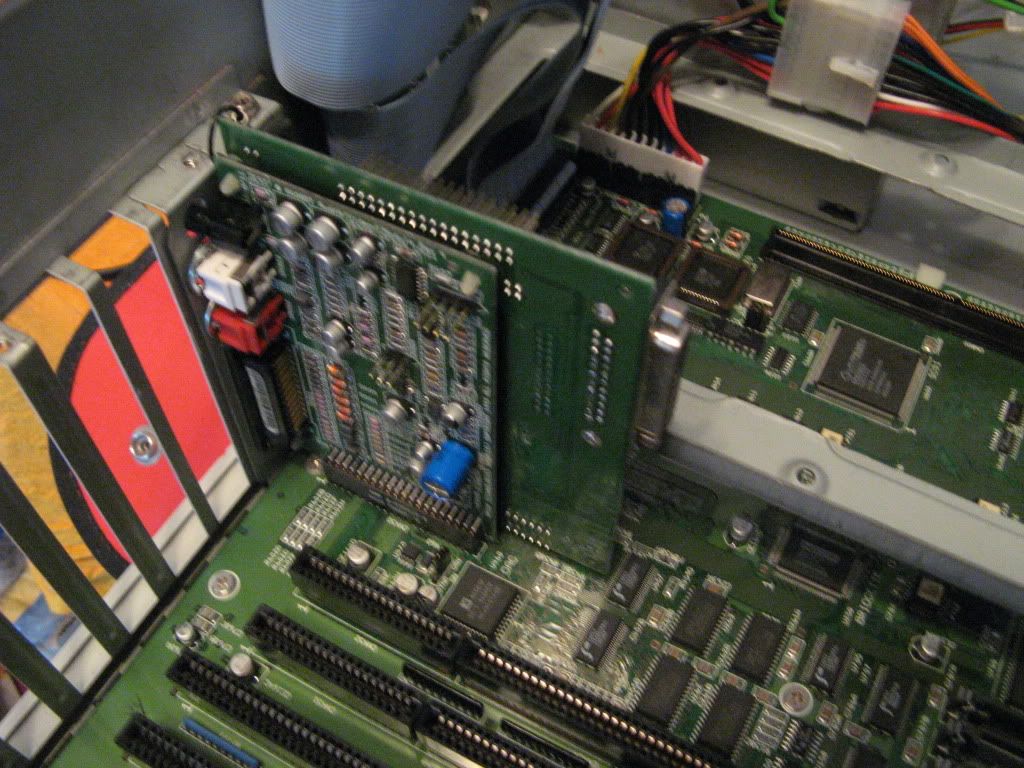

http://i294.photobucket.com/albums/m...e/IMG_2128.jpg
http://i294.photobucket.com/albums/m...e/IMG_2129.jpg
http://i294.photobucket.com/albums/m...e/IMG_2132.jpg
http://i294.photobucket.com/albums/m...e/IMG_2131.jpg
It's one damn expensive paperweight :thumbsdown:
Does this happen with all the Zorro ports? Maybe the connectors need replacing or there is a short somewhere... I bet they are not easy to get hold of if that is the case :(Quote:
Originally Posted by fitzsteve
I've tested the cards in all the slots mate, and with the A4000D two different busboards, one that was from my Elbox Tower I know was 100% working so I'm stumped :unsure:Quote:
Originally Posted by Paul_sDoes this happen with all the Zorro ports? Maybe the connectors need replacing or there is a short somewhere... I bet they are not easy to get hold of if that is the case :(Quote:
Originally Posted by fitzsteve
Maybe my Deneb is the issue, it is the only thing constant in this since it contains the 3.9 kickflash I need it in all setups.
The A4000T Boots every time with my A3640 & a 1gb SCSI HDD with OS3.9 :dry:
I'm still not 100% sure about the PicassoIV either, damn I wish I didn't sell my other one :Doh:
Steve.
Hi mate.
Sorry to read there are still issues with you A4kt. When I get mine back you are welcome to test your setup in mine to help iliminate stuff?
@ Steve
Can you swap the CSPPC 64Mhz Crystal for a 50Mhz one?
I see from the first posting of Pics that there are only 2 Crystals fitted to the card. Because they haven't fitted the Third one & moving a small resistor between ram slots 1 & 2 (doing this enables the 3rd Crystal socket) your SCSI is running in Sync with your Overclocked 060, & thats @ 64Mhz. This is why you are seeing the instabilities. Long term exposure to these bus speeds will eventually kill your card as the cards logic will become fried. Those big black chips between Ram slots 1 & 2 get hot & even hotter @ 64Mhz. Without adequate air flow, preferably a fan blowing across the board between the ram slots 1 & 2, your card will eventually die.
Move the resistor, install the 3rd socket, put the 64Mhz one in it & a 50Mhz back in the one currently fitted with the 64Mhz & your stability should return, if you haven't already half fried the cards logic of course.
See here for full Overclock procedure.
http://members.iinet.net.au/~davem2/...ock/csppc.html
I'm sure this will stop your issue & prevent the card from dying. Put it in your A4KD & run it is asking for an earlier death of a CSPPC card. Trust me.
@D.B :bowdown:
Firstly, thanks for your post! It was not me who did the overclock, this is how the card came to me.
On inspection the 64mhz x-tal isn't even properly soldered in place, it has been pushed into the old solder holes :o
So with that I was able to easily swap it for a 50mhz one, and to my surprise with all my zorro cards in place including the PicassoIV it has booted first time :bowdown:
It remains to be seen if it will boot next time, but I take this as a good sign. I just hope no lasting damage has been done.
It was strange becuase without the zorro cards the CSPPC would always boot at 64mhz, I guess it just gets unstable when you add expansions?
I'll update ya'll, but I think I will need to get someone to fit the x-tal properly as I don't want to put my soldering iron anywhere near this card! :butcher
Thanks again D.B :bounceBoingBall:
Steve.
---------- Post added at 18:56 ---------- Previous post was at 18:44 ----------
It's still booting with nothing changed, looks like you're right D.B - It can't take the 64mhz :ninja:
Thanks again :bowdown:
Steve.
Glad to see the beast up and running :thumbsup:
:bowdown: D.B.
Thanks :thumbsup:Quote:
Originally Posted by Gouldin
And to think I was about to trow the whole thing in the Skip :lol:
Lmao, ya couldn't throw the towel in when ya only recently convinced me to keep on trucking with the cd32 :)
Sent from my R800i using Tapatalk
nice one steve glad you got it working with all the time and effort you put into all your miggys to just give in :thumbsup:
You can post the card to me for correct modification if you like. I don't want anything for it other than you covering all postal costs.
I might have a 50Mhz Crystal here, but need to look in the storage drawer.
Your choice kiddo.
PS. Soldered/Socketed.... Depends how straight the legas are. ;)
---------- Post added at 20:51 ---------- Previous post was at 19:53 ----------
But put a fan over those Logic chips between Slot 1 & 2 & you might become stable. A4KT Tower has no real intake on the front. Like most of todays modern cases, bad design. :nod:Quote:
Originally Posted by fitzsteve
Maybe a fan & a 60Mhz Crystal could be good.
Logic wins most times. ;)Quote:
Originally Posted by Gouldin
Thanks mate :thumbsup:Quote:
Originally Posted by johnim
Thanks for the offer, I think actually the problem is that the crystal was not correctly soldered and maybe it would have been ok at 64mhz, sure in the end it could kill the board so clocking back is the best thing to do.Quote:
Originally Posted by D.B
I came back to the A4000T after being out for a while and it didn't boot the first time (this is with 50mhz x-tal I instaled in the old solder holes) I pressed down on the crystal switched back on and then it booted so I think just a loose connection now.
I think I'll get the CSPPC recapped and the 50mhz x-tal soldered properly and leave the mod/overclock.
Cheers,
Steve.
OhOh, I wouldn't be happy to fry a CSPPC now a days... Lucky someone with good eyes was looking at your pictures with some larger expertise than all of us !
Happy ending then ?
yay least it seems the crystal is the problem, lets hope it is and you have found the solution :cool:
Hi Steve,
Maybe 060 socket is an issue?
As you know it's SMD socket with tendence to creating solder cracks (very small) between CSPPC PCB and socket.
One day card can work without issues, second day no boot, but it should boot if 060 is pressed (to get contact).
I know this because I've replaced 5 sockets on CSPPC already.
Please check A4000T with another CPU card. If everything will be fine place CSPPC again and press 060 on the top and power-on. If you will have boot - 060 socket is an issue.
And please do not recap CSPPC. Capacitors used there are very good quality. No need to replace.
Quote:
Originally Posted by stachu100
Thanks for the advice Stan :thumbsup:
I will get an expert to correctly solder the 50mhz crystal for me and keep that card like this.
Out of intertest, how safe is the 363mhz PPC overclock?
Cheers,
Steve.
Hi Steve, my friend.
I don't know on A4000T mobo, but under A4000D works like a charm :thumbsup:. I'm looking to find a way to send my second CSPPC to Stan for an upgrade.... :)Quote:
Out of intertest, how safe is the 363mhz PPC overclock?
I just wanted to post thay you should not ask me but listen the others, but Pablo was faster. ;-)
Quote:
Originally Posted by merlinkv
Thanks my friend :thumbsup:
My small concern was that Amiga_Fun's overclocked CSPPC does not work on either of our A4000T's :dry:
I'm very tempted, but only worry is postage between Poland/UK & UK/Poland :whistle:Quote:
Originally Posted by stachu100
Maybe you could PM me a quote?
I would keep 060 50mhz I think unless you can say 60mhz is safe with the mod D.B advises.
Cheers,
Steve.
@ fitzsteve
The CSPPC is a multi-layer board & just leaving a loose Crystal placed into the PCB is really asking for problems. You can fit a socket, but on some CSPPC cards, there is not enough room to have a Socket + Crystal with a SIMM module in the first slot. Some CSPPC cards used SIMM sockets with a higher angle, but not entirely upright, & these fortunate cards allow you to get away with a Socket + Crystal height.
A 64Mhz overclock on the 060 is safe, but you should apply an Active Cooled Heatsink & move that resistor to enable your 3 Crystal socket placement on the CSPPC. This will then allow you to run the SCSI Async with the 64Mhz 060 & will prevent a premature death. As I said earlier, with the 060 & SCSI running in Sync @ 64Mhz, those big black chips between SIMM sockets 1 & 2 will get very hot & constant expossure to these high temps will eventually kill the card.
Overclockability of these cards is no different to the A1200 versions. Both have the caveats & the way in which stachu100 mods the A1200 cards is to fit a faster PPC chip. You can squeeze a bit more by moving the resistors around for the PPC & this can also be done on the CSPPC cards too. If you look at the link I showed you earlier, there are two ways to overclock the PPC chip.
In all honesty though, overclocking 20+ year old computer equipment is on the edge stuff. It's a wonder they still work @ stock speeds after this time, so why run the risk of killing it a whole pile sooner?
I'm sure that if you just solder a 50Mhz Crystal in place of the 64Mhz one, all will be good, but equally, moving the resistor & fitting the 3rd Crystal @ 64Mhz with a 50Mhz one where the 64Mhz one is at present will still leave you with a very safe Overclock. Just remember that Async is safe, Sync as it is now is not. :thumbsup:
My 2 cents worth on A4KD's & A4KT's with CSPPC cards is absolutely no difference. Stock speeds or overclocked. All I could say on the matter is that all your hardware in an A4KT will be a lot cooler than A4KD, just down to air flow or the lack of it as in A4KD. Overclock components & obviously you are generating more heat. Do the math. ;)
@D.B.
Hi mate :)
I don't know about the upgrade jobs Stan (or others) made on PPC boards, but I tought is not only a change of the PPC/060 and he also change crystals and capacitors needed for that upgrades.
I have one 060/66 PPC/363 upgraded by Stan, and works fine, no crashes, no "Gurus"..... like a "new" sotck one. Of course, I have good fans installed so the board is cool all time.
The overall speed between 060/50-060/66 and PPC/233-PPC/363 is really a big difference and one well upgraded board is, in my opinion, recommendable.
@ merlinkv
Stan is a Legend in his own right. :thumbsup:
Unless you can fully appreciate over clocking & the consequences for doing it one way over another, then what I have tried to explain above is always going to be a bit of a mental block. I can't really explain it any other way than I have & do not mean to make it all sound complicated. Either you understand how the bus speeds are controlled or you don't. ;)
What I didn't mention earlier is the 2nd (middle) crystal actually runs through a divide by 2 counter for the SCSI & ram speed, so the 64Mhz Overclock is actually forcing the RAM & the SCSI to 32Mhz from 25Mhz. Slowing the cards RAM speed to 70ns can help with 60ns RAM in place, yet I wonder what 50ns modules would allow on an overclock. It could help greatly, but the cards Logic is still @ risk due to heat.
@ thread
Faster PPC Chips have a bigger Multiplier than the slower ones. Using a higher Multiplier on a PPC CPU with the same Bus speed is the safest way to overclock it. You can however push for more on a Stock 233Mhz CPU by changing resistors & forcing a bigger Multiplier on the CPU. Your mileage will vary as no two pieces of silicon are ever truly identical. I don't know if 68xxx CPU's have multipliers available in their technology & may be locked (burnt in) after soak testing following manufacture. I doubt it tbh as no accelerator board for the Amiga using 68xxx architecture has ever had the ability to move resistors to change the Multiplier & thereby increase the CPU speed with a fixed bus speed.
Hi again,
Of course, I know the "price" maybe you "pay" using overclocked boards, is the same in all computers new, and older ones. But, with 20 years old hw, also the stock ones can go :thumbsdown:
Maybe I'm wrong, or you have a different opinion...... But if you have the knowledge about the design and possibilities of these boards -me not- and installs, good CPU's, crystals, capacitors,...... I tought is not a problem to use overcloked ones.
Quote:
Originally Posted by D.B
@ merlinkv
Over clocking always carries a risk because it's outside the manufacturers specification. If you want to overclock, go ahead & risk it but at least take preventive measures to dissipate the extra heat generated.
Some might consider this overkill, but here's your best bet & note the Fan still applied for the Logic Chips & Ram, despite the water blocks:
http://members.iinet.net.au/~davem2/overclock/water.jpg
You can read about this Mod here:
http://members.iinet.net.au/~davem2/...watercool.html
Apologies to fitzsteve for perhaps going a bit off topic. :oops:
No probs, thats fricken awesome :D :bowdown:Quote:
Originally Posted by D.B

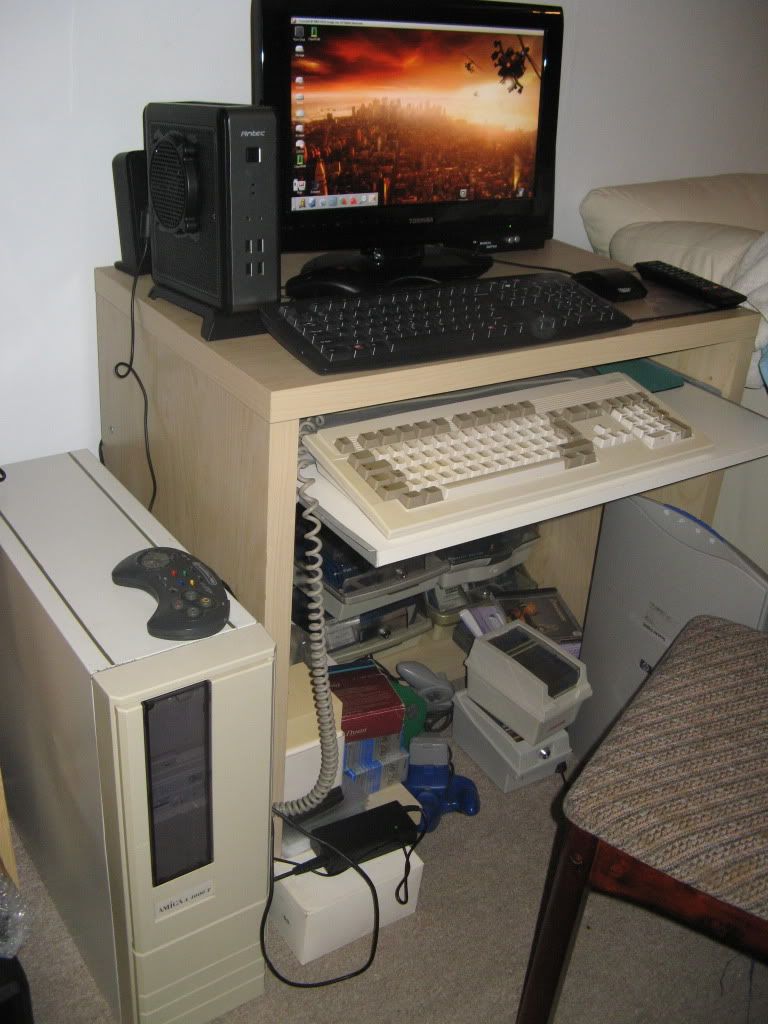

Just a little update, (you may have seen in another thread) but the A4kT finally has the door back on and screws in place (for now!)
http://i294.photobucket.com/albums/m...e/IMG_3145.jpg

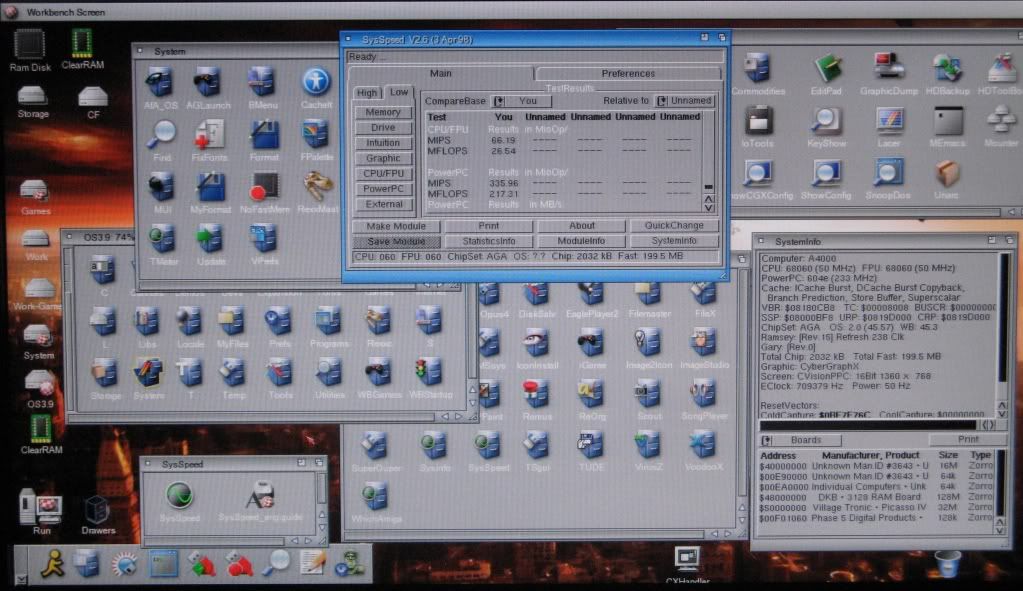

http://i294.photobucket.com/albums/m.../os39csppc.jpg
Awesomenez:D
Wot the case is on and she`s still working, \o/
Yay lets hope she gives your hours of trouble free amigagoodness :cool:
Quote:
Originally Posted by mfilos
Thanks guys :grouphug:Quote:
Originally Posted by cosmicfrog
:bounceBoingBall:
i think it really great what youve done with this machine steve,awsome work there mate.
i was reading the part about overclocking these cards and thinking that it's not a good idea to overclock the "original cpu's" although i overclock cards myself,the confusion is this:
stachu replaces the original 060 and 604 with later revisions which is safe.the earlier 060 masks gave off alot more heat to disipate so and where not much use above 60mhz,revision 6's can go well above anything these cards can handle,even revision 5's will go to 70mhz.(earlier revisions where less tolerant)
the 604's that stachu uses are literaly rated at the speed there clocked at anyway,its only a problem if you have the "original 604"and overclock that,these parts get very hot.what stachu does is a great job on these cards from the get go,ive never had anything done by stan,but i would say dont try the ppc side yourself as its not for the faint of heart,as replacing bga components requires specialised equipment(done one myself and i wont recomend anyone try it unless they know what there doing)
as for the 060 and 603 parts stan puts on the 1200 version of this, there rated at 300mhz anyway(stan can correct me if he likes)plus the 060's he puts on these are rev 6's,on both cards the scsi parts will give up long before the 060 will.
Thanks for the info Roy :thumbsup:
The issues I've been having don't seem to be due to the overclocking of the 060 although I'm sure it is much safer to keep her at 50mhz unless we change the chips like you say.
I'm tempted to send the card off to stachu for a make over though :cool:
I'll probably end up using the Cybervision PPC in another project as this A4000T just seems too fragile, always has something wrong with it that I can pinpoint, just when you think you've fixed it something else fails and if you read back I've tested all the components in different setups and all work perfect on their own including the A4000T and have tried of course two other PSU's, there is just something that all this hardware don't like when it all comes together, almost like an incompatibility.
Anyway! Enough of the sob story :coffee:
Steve.
Quote:
Originally Posted by fitzsteve
nah,i dont think its a sob story steve ,and yeah i dont think the problem your having has anything to do with overclocking at all.like you say yourself something in the setup dont like playing with something else in there,had this problem myself and its really frustrating.
i hope you track it down i really do.
Well I thought I'd try something different with this A4000T and see if I could get it running with some proper stability.
Well, so far it seems like I have!
I've pulled the CSPPC as I think this is where the problem lies so I will get the Crystal soldered properly by one of our resident Guru's :bowdown:
In the interim I'm testing the setup with my CSMkII overclocked to 66mhz and using the A4000T's onboard SCSI to get around the issue you get with Cyberstorms overclock SCSI boards (I thought that was a pretty cool idea) :cool:
I've hooked it up as usual to an IDE HDD via one of my Yamaha SCSI-IDE adapters.
I've also plumbed in one of my DKB3128's which seems to be working great now, maybe they just don't like CSPPC's?
Anyway, here are a few pics of my Sunday testing lol.
First up the hardware pr0n :D
http://i294.photobucket.com/albums/m...e/IMG_3171.jpg
http://i294.photobucket.com/albums/m...e/IMG_3172.jpg
PicassoIV working on first boot of a clean CWB OS3.9, weird colour loss on the AGA though... Hmm...
http://i294.photobucket.com/albums/m...e/IMG_3173.jpg
Not to worry though, once the P96 drivers are installed all is great :thumbsup:
http://i294.photobucket.com/albums/m...e/IMG_3174.jpg
Some specs for ya'll to drool over :whistle:
http://i294.photobucket.com/albums/m...e/IMG_3176.jpg
And I'm really pleased with the A4000T's onboard SCSI speed via the SCSI-IDE adapter :)
Oh and you never tire of seeing Native Screens out the PicassIV :bowdown:
http://i294.photobucket.com/albums/m...e/IMG_3175.jpg
And of course, I was working on my new Desk :coffee:
http://i294.photobucket.com/albums/m...e/IMG_3177.jpg
nice mate
great speed from onboard to ide
yea get your csppc done
Quote:
Originally Posted by johnim
Thanks mate :thumbsup:
I've installed and setup my Deneb & X-Surf, so far, so good. I really wonder if I should put the side back on the case though LOL :whistle:
Indeed, will have to get the CSPPC looked at.
mate the sides were made to stay off
im waiting for a fast ata iv from here to replace my idefixplus on my tower hopefully i will see a speed increase
