Yup,Quote:
Originally Posted by fitzsteve
Looks good, I can check later for you.Quote:
Originally Posted by kipper2k
Any plans to do something with built in IDE? Maybe based on IDE68k? A500/A1000 badly needs this!
i want to integrate it on all the mem boards for the A500, i have the schematic, iam trying to persuade MKL to send me his .brd file so i can do it a lot faster, and at same time send him my files. I'd also include the header for the CF card too if there is room :)
Quote:
Originally Posted by kipper2k
That would be awesome :)
I wont clog this thread though as it's a sales thread.
IMHO I think you deserve your own section in the forum for conversations about your new projects, or at least a section we can all discuss new hardware :thumbsup:
Steve.
---------- Post added at 19:58 ---------- Previous post was at 19:41 ----------
Hi Mate,

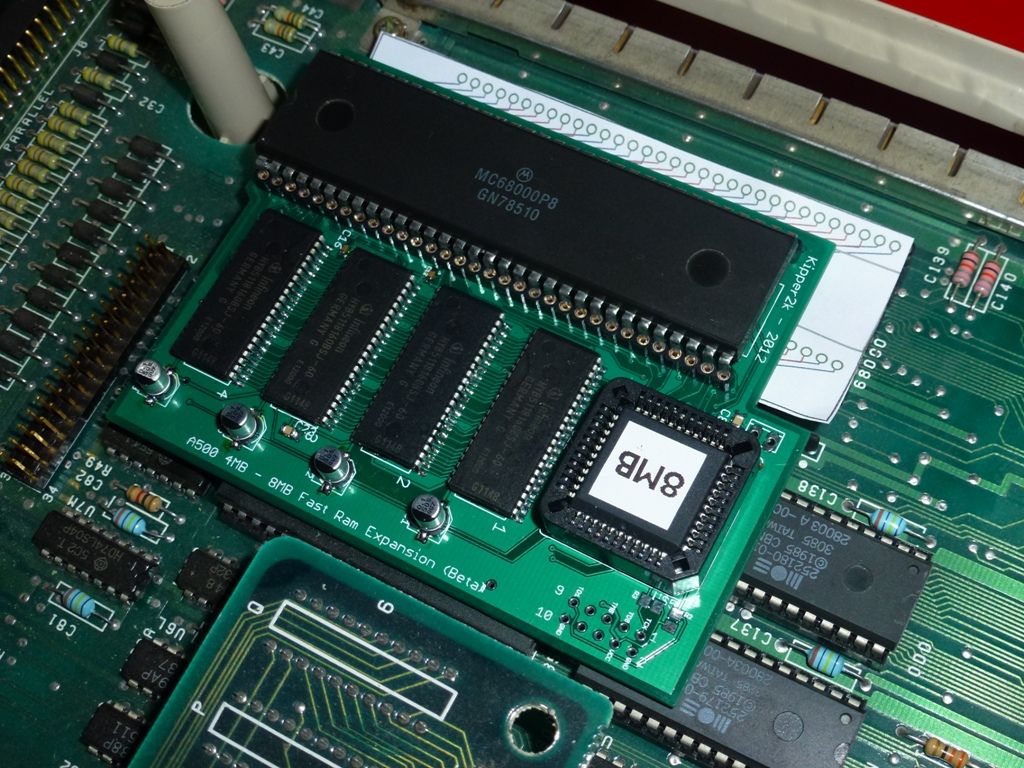

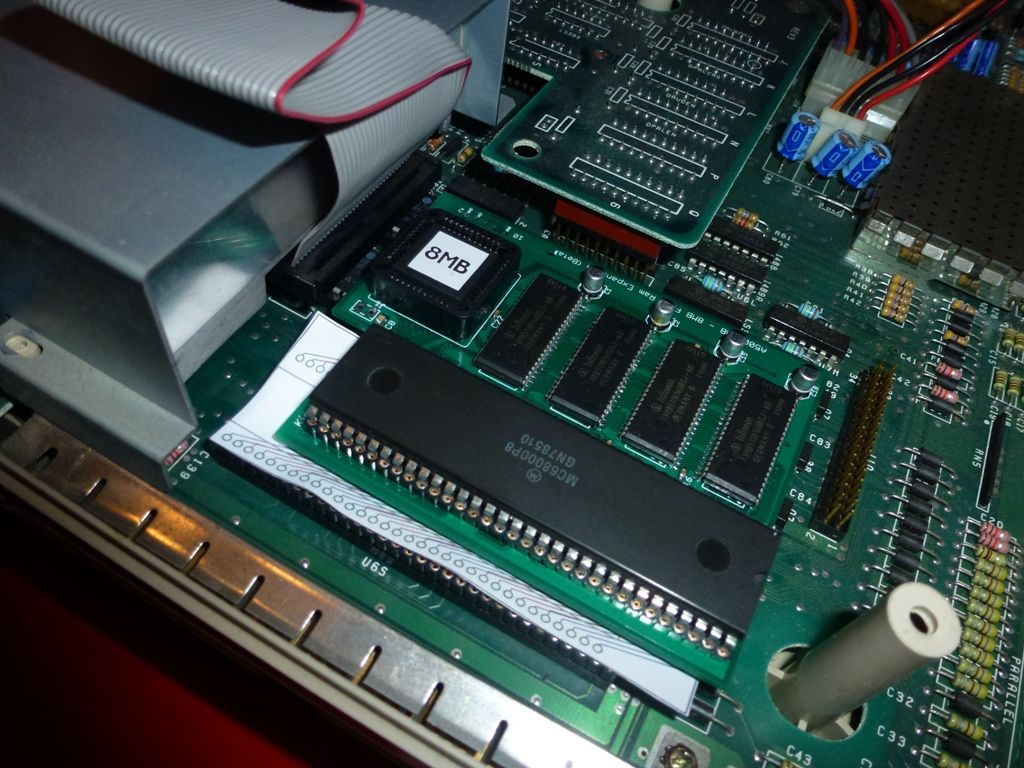

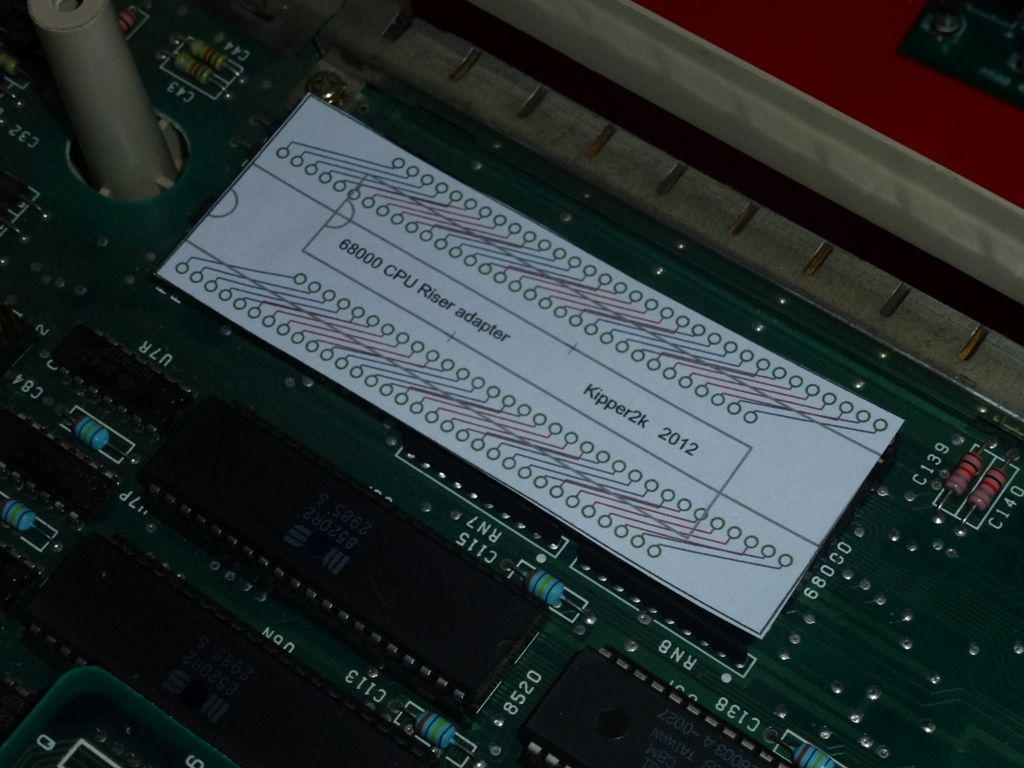

I just had a look at the template for the adapter, I'm 99.9% sure it will be fine however the print out was slightly smaller than actual size, my thinking is that just allows more room ;)
Here are the pics:
http://i294.photobucket.com/albums/m...e/P1000780.jpg
http://i294.photobucket.com/albums/m...e/P1000781.jpg
http://i294.photobucket.com/albums/m...e/P1000782.jpg
http://i294.photobucket.com/albums/m...e/P1000783.jpg

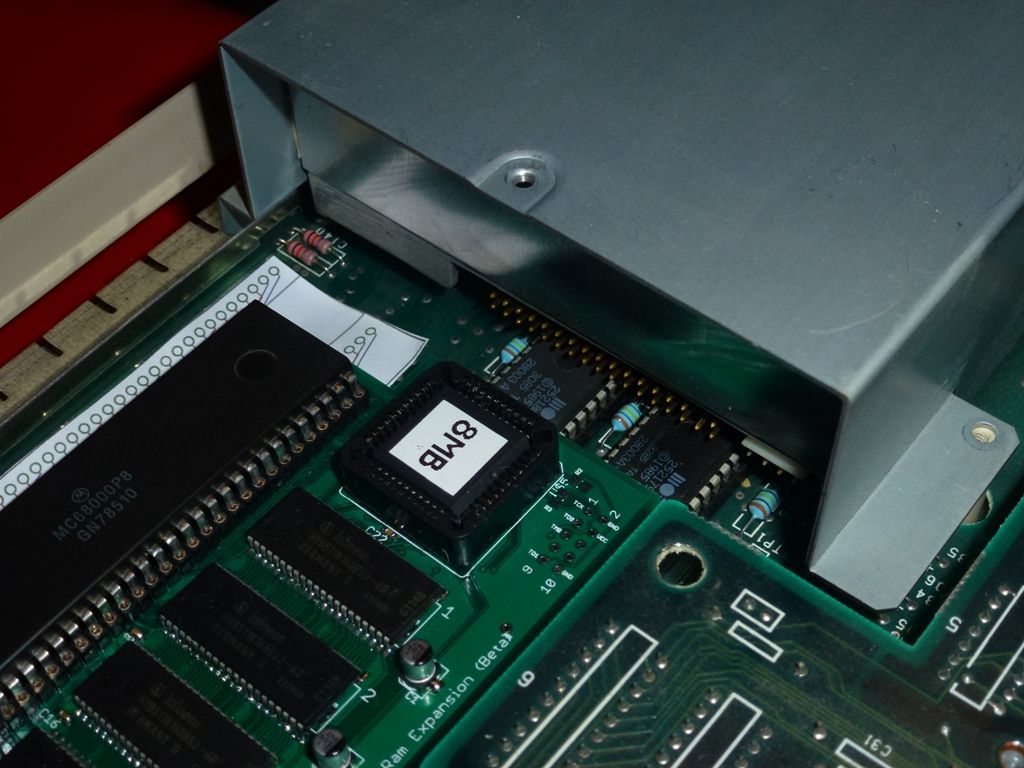

That looks good Steve. I think the fit is good, just the one question, Can the 34 pin floppy be removed without having to remove the Mem board, worst case scenario if the board has to be removed then so be it. I dont think it will happen all that often.
I'll finish up counting what other boards i need and i'll submit an order prob Thursday, so i should have them about 4th Sept. For anyone reading this, The A1000 will need the Rev6 mem board and not the Rev5 boards which are a different design. I have about 20 boards so mabbe people should let me know sooner than later if they want one so i can plan ahead
THanks to all :)
Worst case the floppy drive can be lifted, it will be a little bit tight to remove with the everything in place but with the end product I think it should be a perfect fit and enough space to remove the floppy cable :thumbsup:Quote:
Originally Posted by kipper2k
Got my 8mb a500 board yesterday Klipper and it works perfectly!
One "small" problem tho, it wont fit together with my IDE68k v402 as the IDE connector pins are too damned close to the chip socket (4mm's further to the left and it'd be perfect) so I sold on to another Adelaide based amiga user. It wouldnt work if I installed the IDE68k on top and my keyboard wouldnt fit back in that way either.
Im a bit gutted* too as the board is so damned fast! :(
*I have Toms excellent 8mb board too but it's not auto-config.
Sorry to hear about the clearances, You may be interested in the V5 version as the design is a lot different and may be able to enjoy the IDE68k installed in there. I'm curious why the ide68k board wouldnt work when piggy backed on top?Quote:
Originally Posted by djos
Yeah Im not sure why it didnt work that way either, I may not have seated it properly (keyboard didnt fit after installing them anyway so a moot point).Quote:
Originally Posted by kipper2k
Cool, I'll keep an eye out for it. :)
PS, this shows just how close the v402 pins are to the 68k socket:
http://www.students.tut.fi/~leinone3/ide/brd402.png
Quote:
Originally Posted by djosYeah Im not sure why it didnt work that way either, I may not have seated it properly (keyboard didnt fit after installing them anyway so a moot point).Quote:
Originally Posted by kipper2k
Cool, I'll keep an eye out for it. :)
PS, this shows just how close the v402 pins are to the 68k socket:
http://www.students.tut.fi/~leinone3/ide/brd402.png
I have just done some reading on the IDE68K project and i can't find anything in the setup, connections or conflicts in code that should interfere with the 2 boards getting along. If i had a IDE68K board i would be able to do some more troubleshooting but availability of the IDE68Ks are a little tough to get hold of.
It was probably something I did wrong - shame im not in Nth America as I'd send you mine to play with (it's a 2 week trip each way from Aus).
---------- Post added at 12:56 ---------- Previous post was at 12:29 ----------
Interesting, does the IDE68K + CPU go in the socket above the Ram (below the "KIPPER2K 2012" writing) like this (forgive my crude mashup)?:Quote:
Originally Posted by kipper2k
http://dl.dropbox.com/u/71121999/Ami...k_Rev5_8mb.JPG
if that is correct then put me down for a V5 8mb Board. :cool:
Quote:
Originally Posted by djosIt was probably something I did wrong - shame im not in Nth America as I'd send you mine to play with (it's a 2 week trip each way from Aus).
---------- Post added at 12:56 ---------- Previous post was at 12:29 ----------
Interesting, does the IDE68K + CPU go in the socket above the Ram (below the "KIPPER2K 2012" writing) like this (forgive my crude mashup)?:Quote:
Originally Posted by kipper2k
http://dl.dropbox.com/u/71121999/Ami...k_Rev5_8mb.JPG
if that is correct then put me down for a V5 8mb Board. :cool:
Both CPU sockets are a simple extension of each other so in theory you can put the CPU/IDE68K in any socket or piggybacked in one. I can't confirm it will work until someone tries it but like i said earlier i don't see any reason why they can't coexist.
Edit, the IDE68K would have to sit in the left hand socket as i didn't carry all signals over to the right hand socket, only the ones required for the fastmem portion
