A3000 zip to simm adapter question

[vibros]

Hello,

it is possible to have an adapter (zip to simm) to use only one simm of 16mb? In other words, work a single simm of 16mb with all the RAS/CAS lines routed to a single simm socket?
I refer to an hypotetic adapter and not on what it is possible to find on the market.

Regards
Stefano



[SpeedGeek]

Yes, it's possible but you need to add some logic to support the 16MB SIMM:

https://www.amibay.com/showthread.php?15345-A3000-16MB-SIMM-mod

Sorry, I've been to busy with other projects to do any more work on the PCB.



[DutchinUSA]

Interested ! Sending PM

Just kidding of course .. though I would love to see something being done with this



[vibros]

Yes, it's possible but you need to add some logic to support the 16MB SIMM:

https://www.amibay.com/showthread.php?15345-A3000-16MB-SIMM-mod

Sorry, I've been to busy with other projects to do any more work on the PCB.

Hello,

many thanks for your reply! The adapter is already drawed (with my own solution), but it show only 8mb even with a 16mb simm. So, i have thinked innocently that to route all the RAS/CAS lines was enough to have all the ram. I will add your GAL on my design, if it is allowed!

Regards
Stefano



[vibros]

Hello,

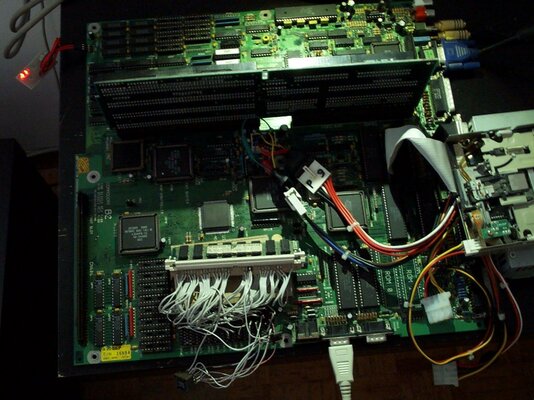

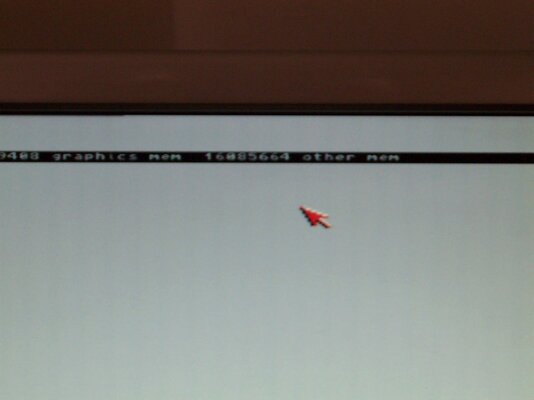

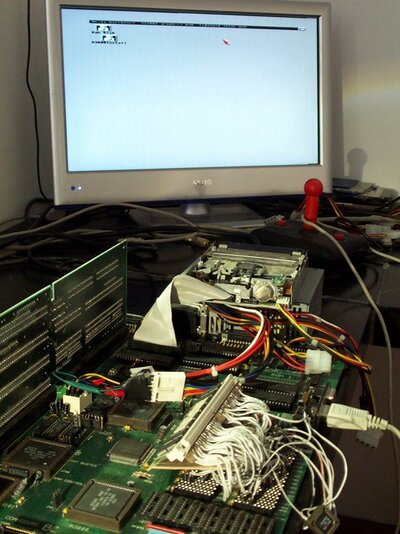

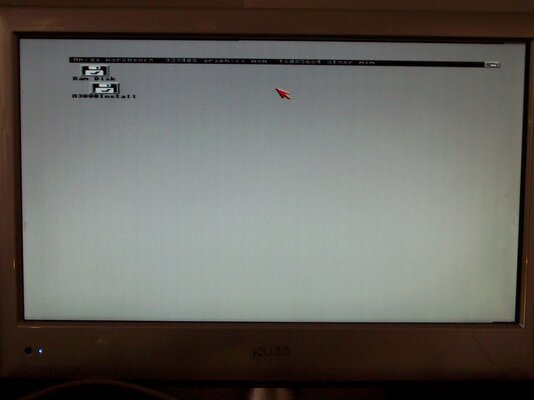

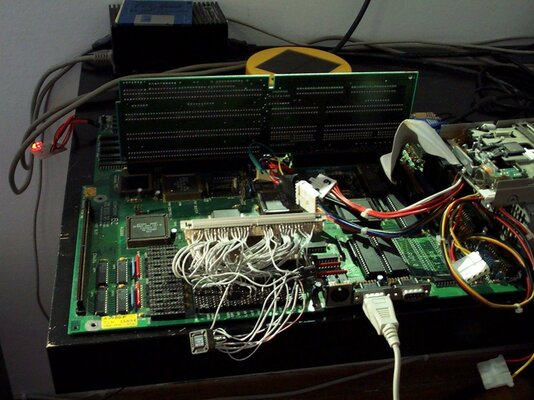

thank to SpeedGeek, i have 16mb on my A3000D. I will go forward to add to my PCB solution the GAL IC, then to print it at home.
On my PCB, all the tracks are on a single side and no wires are needed: it is a little bit unusual and not easy to achieve this result.

Regards
Stefano



[Firthy2002]

Hello,

thank to SpeedGeek, i have 16mb on my A3000D. I will go forward to add to my PCB solution the GAL IC, then to print it at home.
On my PCB, all the tracks are on a single side and no wires are needed: it is a little bit unusual and not easy to achieve this result.

Regards
Stefano

I'm sure this will be popular with most A3000 owners!



[vibros]

Hello,

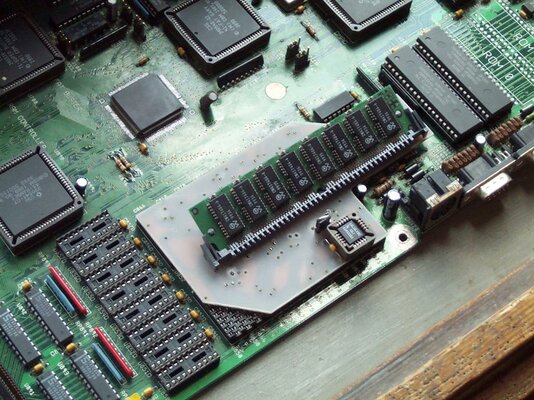

i have built the adapter. More info will be post later on the section Photo Booth.

Regards
Stefano



[MindWalker]

Awesome design! Very nice



[DutchinUSA]

Awesome Stefano !!
