Boards usually supplied without documents. For online information (about kickstart and needed wiring for A500,1000,2000, CDTV) see http://www.mklboards.fi/index.html

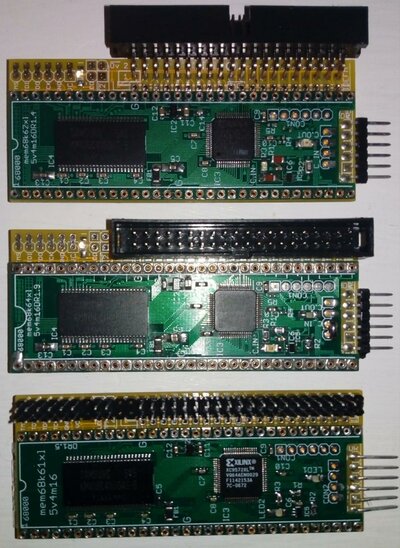

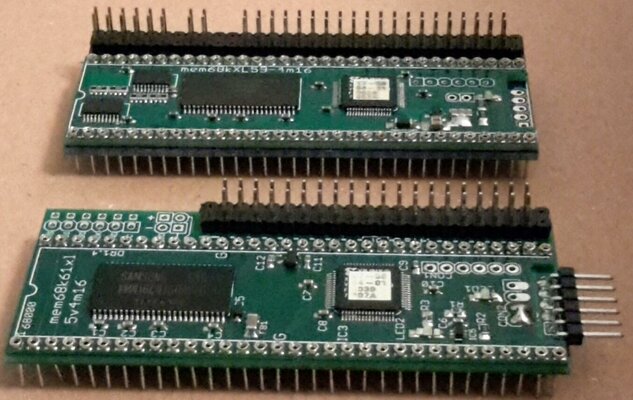

2 available: Ide + 8MB combo units. 85€ includes also: CF-adapter, 1GB CF (this model 'fixed disk' in HDToolBox), and a CPU of choice: low power new old stock MC68HC000P10 or nos MC68000P12.

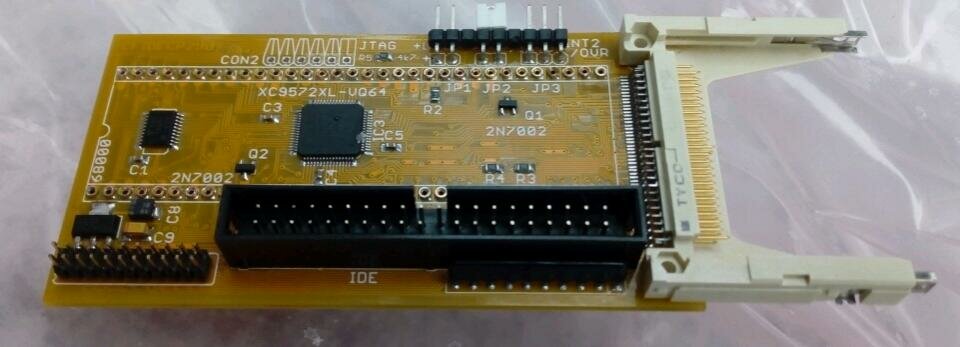

Low profile combination for A500 and CDTV(which need cpld reprogrammed)

Shipping 100g 7.50€ Europe, 17.50€ world (registered mail +16.10€ signature, tracking not available to every country)

A number of IDE only boards will be available, 45€

3 RAM boards listed in its thread.
Message: If you have a ram board from me sold before september 14. 2018, your board probably has a malfunctioning RAM controller. It can be fixed by reflashing the CPLD using 6-pin pogo pins and whatever tools you use for Xilinx CPLDs. I have no guide for the process now.
Jedec files and other info: http://www.mklboards.fi/ram68k

Old pictures and text below:

A2000 can fit separate ram and ide boards stacked. A1000 maybe can fit this stacked set? A1000 needs also KS-ROM adapter to boot.

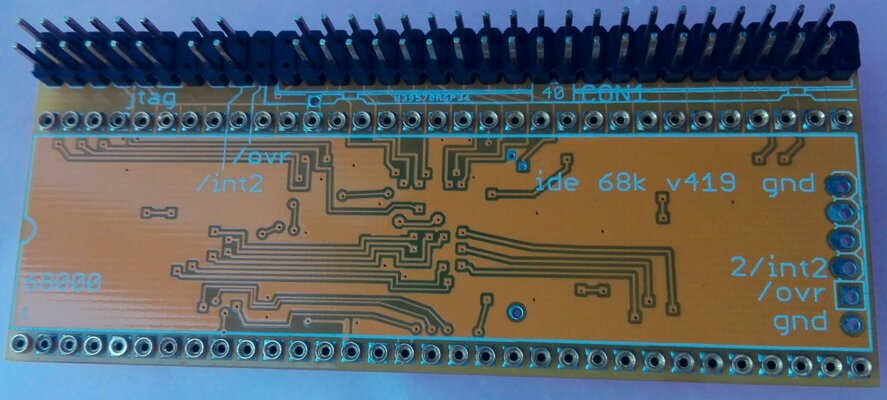

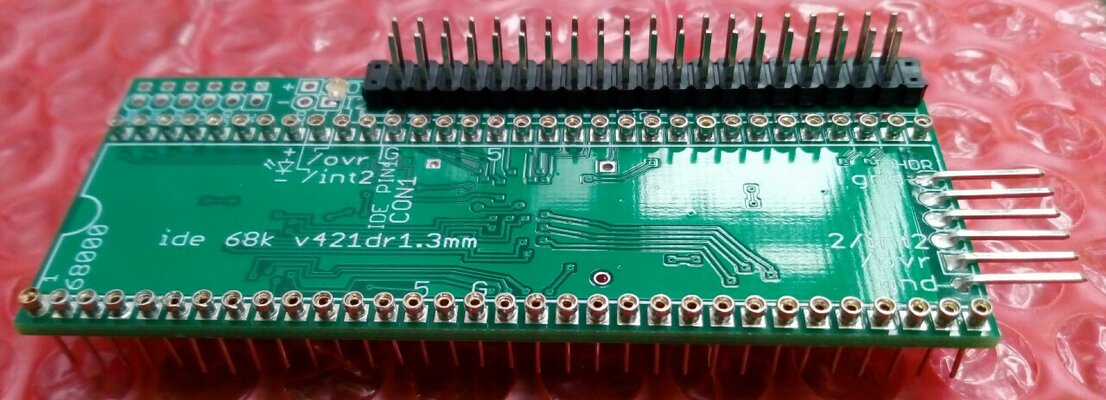

IDE v425i 50€
0 pcs

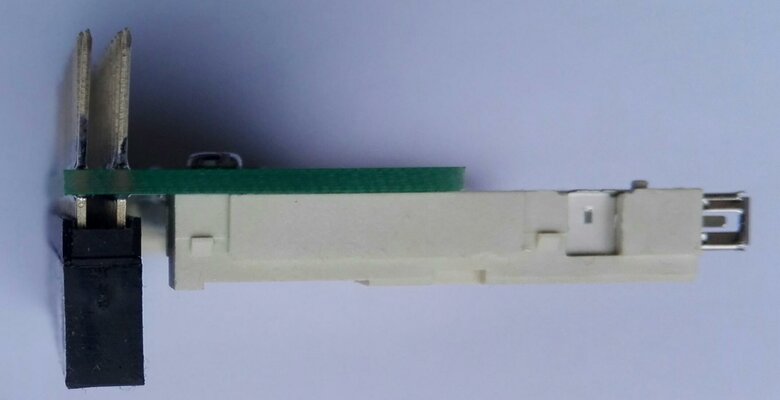

Special ide-cf adapter for v4xx for 10 euros or with a v4xx board +5 euros. CF-card will be against the 68000 cpu chip and upside down. Female header or female header with extended pins on other side for connection of other ide bus device. Photo at post #461)
a few: with clearance for v4xx+v6x ram combo. 5 pcs for v4xx without ram board, 0 pcs with clearance for soldered combination ide+ram units, 0 with extended pins.

Studio_20161003_141455.jpg IMG_20171031_182857.jpg

PCB: 5€ ram v67, 6€ ide v425i

RAM homepage --- www page not available at the moment

8MB v59 and (v6x) (/ with ide board) info: a posting in this same thread.
Ide info below in this post.

(link to old thread for ram )

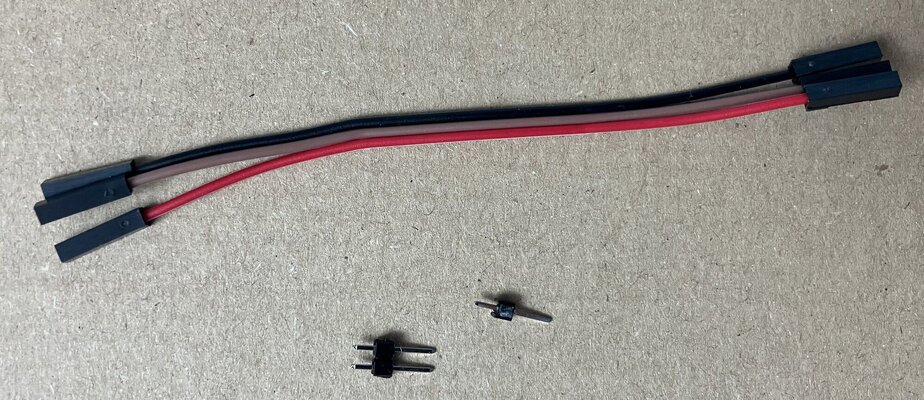

Might include wires and pin header for int2 and ovr connection.

Pin 20 on ide board has same voltage as cpld, 3.3 volt regulator on v425 board max. 300mA. Some CF adapters have diodes on supply lines, the floppy power input can be used on those (maybe jumper diodes to drop +5v to +3.3v).

Pin 20 can be removed for 80-wire ide cables.






Summary: Plugs to 68K socket, one 40-pin (or 39-pin) connector, "cf" versions also have cf connector
Autoboots using A600's KS-ROM with driver for A600's ide interface (40.063/37.350/37.300)

User needs to connect two (3 in 'cfidecp') signals to Amiga mainboard. A ground wire alongside with signal wires is recommended if the signal wires are not short and following ground trace on amiga pcb to reduce EMI caused by loop inductance.

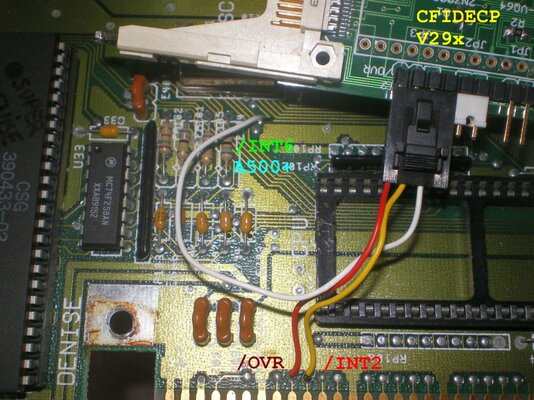

Cyberfred91's picture of placing a v402 board and cpu on A500 board (R8A1).
(Click the following attach link if the thumbnail doesn't show up)
View attachment 118080 a500+IMGP1500.jpg


Some pictures:

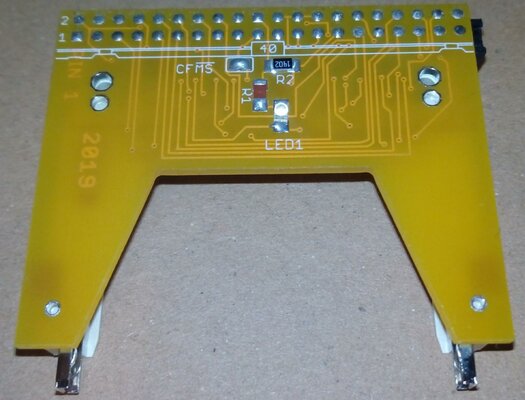

A600 cf adapter

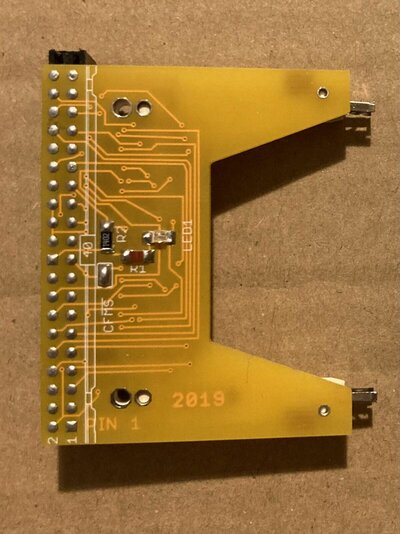

-a few pcs: A600 Internal CF-card adapters to IDE connector 15 eur/pce.

Version with also a extension header on top (for hard-disk cable or other adapter) 15€ /pce. Other guide "wing" of cf socket is removed to make space for top header connector.

Mouse adapters
-0 pcs stock Amiga ps/2 mouse adapters with 10pin header, 15€
-upto 7 pcs, without header, long body right angle db9 connector, 20€
PS/2 mouse adapter, Version for Atari ST for sale at Atari ST section.https://www.amibay.com/showthread.p...pters-for-Atari-ST-(-quot-PS2M-quot-firmware)

Other items, Riser cards

LINK 68000 cpu:s
LINK SOJ RAM to DIP-20 footprint adapters with 1M x 4 drams
LINK "riser" cards for 68000 socket, a500 side slot 86-pin edge
LINK adapter board TV-frequency-VGA-in+stereo-in -> SCART-socket-connector-out
LINK 27c4096 to 27c400/800/160, plcc denise to dip socket adapter
LINK 2x 29f040 flash plcc to 27c800 dip socket
LINK ps2 mouse adapter for Atari ST
LINK DCN-2692 (cbm-1581 'clone') v0.15 boards, without cia,wd1772, or rom


Payments

1. Paypal "gift" (send your shipping address by PM) or add fees for (ordinary) paypal.
1B. if sending usd, check that both sending and receiving amounts are in usd (not receiving to euro balance)
2. "Euro transfer" to bank account with IBAN (+ BIC) number (and other needed data.)


Attachments

  • 20180708_233903-1.jpg
    142.7 KB · Views: 10
  • IMG_20190311_073509_crop_961x347.jpg
    42.5 KB · Views: 12
  • IMG_1095.jpeg
    298.1 KB · Views: 8
Last edited:

mfilos

Extr3m3ly l33t
Rating - 100%
73   0   0
Joined
Mar 17, 2008
Posts
2,424
Country
Greece
Region
Glyfada/Athens
I would love some pictures of CFIDE68K V296 mate :)
Btw, is the current version of A600/1200 Internal CF-card adapters to IDE connector, the same as the one I got from you some time ago?



mkl

Member
Blogger
Rating - 100%
119   0   0
Joined
Jan 28, 2009
Posts
351
Country
Finland
Region
Espoo
I would love some pictures of CFIDE68K V296 mate :)
Btw, is the current version of A600/1200 Internal CF-card adapters to IDE connector, the same as the one I got from you some time ago?



Yes, the a600 adapter is that same version.


johnim

New member
VIP
Rating - 100%
153   0   0
Joined
May 18, 2010
Posts
13,051
Country
England
Region
birmingham
can i have a mouse adapter please
pm sent
payment sent

Last edited:

mkl

Member
Blogger
Rating - 100%
119   0   0
Joined
Jan 28, 2009
Posts
351
Country
Finland
Region
Espoo
Both completed a600/1200 cf adapters and most mouse adapters sold.
I'll send sold items on wednesday.


mkl

Member
Blogger
Rating - 100%
119   0   0
Joined
Jan 28, 2009
Posts
351
Country
Finland
Region
Espoo
@mkl

Does the IDE adaptor work on A2000 with accelerators? Does the clockport interface work? What's the maximum length of the IDE cable that could be used?

Answer for all three questions: Unknown.
Long cable length might bring signal integrity issues, normal IDE-cable is probably ok (about 40 cm). Termination of critical signals and using 80-conductor cables should make long cables work better.
Clockport is not tested by me, I should get some clockport devices to test with.
If A2000 accelerators (in 86-pin slot?) work, I don't know.


Well, so far no progress with it.


Eamoe

Member
Rating - 100%
13   0   0
Joined
Oct 30, 2009
Posts
57
Country
Switzerland
Region
Lake Geneva
Hiya! Got my IDE adapter this morning, it came BLAZING FAST across Europe, nice service, many thanks mkl. Excellent piece of hardware. Leaving feedback now.


johnim

New member
VIP
Rating - 100%
153   0   0
Joined
May 18, 2010
Posts
13,051
Country
England
Region
birmingham
hi thanks mkl got my ps/2 mouse adapter yesterday that was fast to me too in uk. work great with a nice new optical ps/2 mouse. leaving feedback now


mkl

Member
Blogger
Rating - 100%
119   0   0
Joined
Jan 28, 2009
Posts
351
Country
Finland
Region
Espoo
Feedbacks left.
Around 10 mouse adapters for sale, special offer 4 pcs for 40 euros price including shipping
(About 10 pcs more by next week)
10+ pcs A600/1200 CF-adapters will be completed probably by next week.
10+ CFIDE68K V296 boards during this week.


vsargiani

New member
Rating - 0%
0   0   0
Joined
Mar 2, 2009
Posts
2
Country
Brasil
Feedbacks left.
Around 10 mouse adapters for sale, special offer 4 pcs for 40 euros price including shipping
(About 10 pcs more by next week)
10+ pcs A600/1200 CF-adapters will be completed probably by next week.
10+ CFIDE68K V296 boards during this week.

Hi,

I have a A500, with A501 memory expansion, and I have some questions about the IDE68K:

Works this IDE68K with 2 devices (HD and CD-ROM, for example)? Can I use the 68010 with the IDE68K? What is the maximum capacity for HDD and partitions?

Could you send a eprom with a kickstart updated for auto-booting?

Thanks


gavilan

Amiga user & abuser since 1988
AmiBayer
Rating - 100%
17   0   0
Joined
Dec 14, 2007
Posts
335
Country
Argentina
Region
Buenos Aires
Feedbacks left.
Around 10 mouse adapters for sale, special offer 4 pcs for 40 euros price including shipping
(About 10 pcs more by next week)
10+ pcs A600/1200 CF-adapters will be completed probably by next week.
10+ CFIDE68K V296 boards during this week.

My friend, i would like to buy one A600/1200 CF-adapter. Would need totall amount including shipping to argentina, since i lost your mails, sorry!

Kind Regards
Sebastian


mkl

Member
Blogger
Rating - 100%
119   0   0
Joined
Jan 28, 2009
Posts
351
Country
Finland
Region
Espoo
ad Gavilan: 22 euros total.


Vsargiani: cd-rom is uncertain. I haven't tried cd-rom myself, but a french user reported problem with cd-rom with v295. Earlier, a V100 was confirmed to work with cd-rom.
More:
HDD partitions and size should be as with Amiga model 600. For autoboot you can use
for example the KS-ROM 3.1 V40.063, which is compatible with A500, 600 and 2000.

I'm closing this sale at least for some weeks. I'll complete the remaining ide boards later for sale.
