Wanted Amiga Denise 8373 PLCC DIP Adapter

[cv643d]

Looking for a PLCC to DIP adapter for an 8373 in PLCC format.



[jumper121]

I started looking for this recently too.

I found a shared project at PCBWay:

Amiga Denise 8373 PLCC DIP Adapter - Share Project - PCBWay

This is a simple PLCC DIP Adapter for the Denise 8373 Chip for use in an Amiga 500 or Amiga 2000This work is licensed under a Creative Commons Attribution-NonCommercial-ShareAlike 4.0 International Li...

www.pcbway.com

I haven't ordered any boards yet.



[mkl]

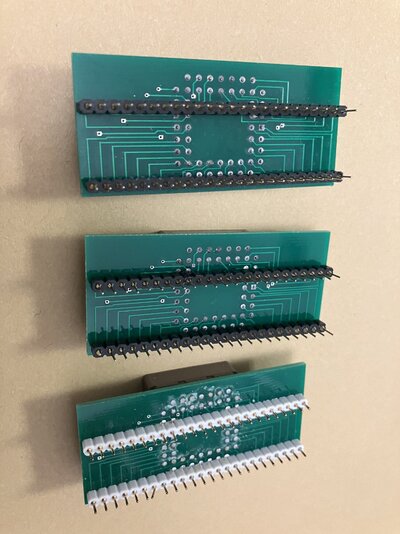

Denise is off-set to dip towards CPU in A500 in this one.

I found that I have 3 adapters.
Broken black header pins need replacing.

Denise dip-48 to plcc adapters, 27c400 to 27c4096 socket adapters, 44pin to 40pin IDE adapter pcbs

Denise and eprom adapters with round pin headers on bottom side, plcc socket/socket headers on top. 10€ each. Shipping 2€ priority letter post (registered +10€ fee ) A few small pcbs for 3.5 to 2.5 ide and pins for +5V power. Solder pin or socket header on opposite side.

www.amibay.com



[cv643d]

Sending PM to mkl



[jumper121]

Denise is off-set to dip towards CPU in A500 in this one.

I found that I have 3 adapters.
Broken black header pins need replacing.

Denise dip-48 to plcc adapters, 27c400 to 27c4096 socket adapters, 44pin to 40pin IDE adapter pcbs

Denise and eprom adapters with round pin headers on bottom side, plcc socket/socket headers on top. 10€ each. Shipping 2€ priority letter post (registered +10€ fee ) A few small pcbs for 3.5 to 2.5 ide and pins for +5V power. Solder pin or socket header on opposite side.

www.amibay.com

Was this your own design?



[mkl]

Yes, I made this using Eagle. If I remember right I used only PCB editor without schematic. It was used in A500+, if I remember correctly.
