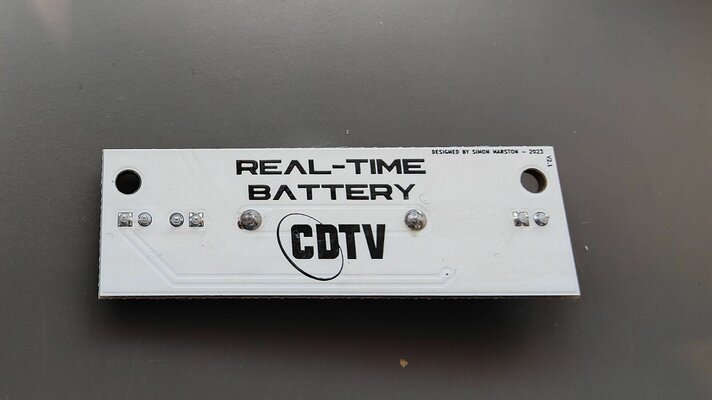

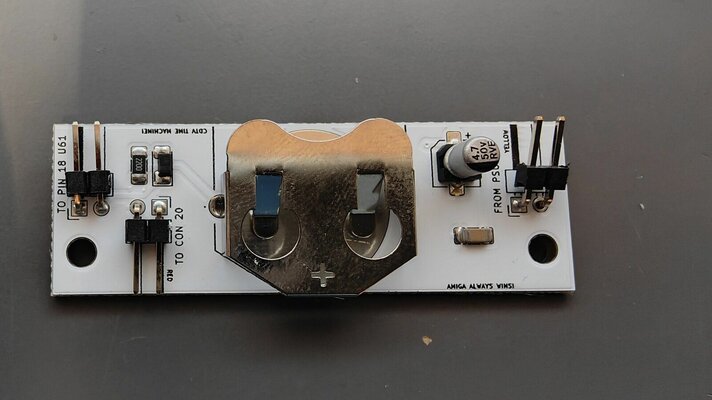

I have designed a small PCB that fits inside the CDTV and keeps the clock chip powered when mains power is disconnected.
It does not keep the display on, as the CR2032 (not supplied) does not have enough power to drive the display.

Kits include the PCB, all wires, screws mounting posts.
Cutting and soldering to IC legs required as part of installation.

Cost is £20 plus shipping. (PM with address for shipping costs)

10 kits for sale.

Edit:
Declaring interest.
Please PM me email address, and I`ll be in contact
