Hello dear Amiga A2000 lovers!

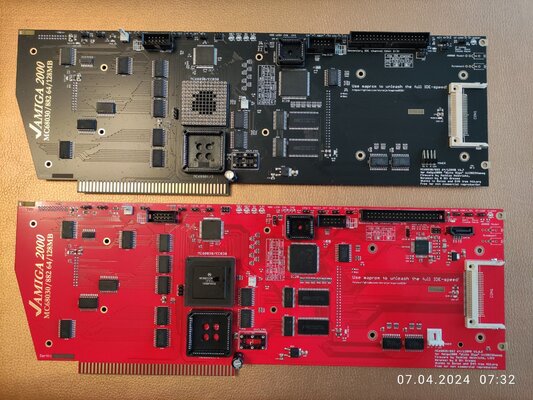

Let me introduce You a new A2000 full size accelerator card - Dicke Olga
- the fastest 030 DIY accelerator for A2000 Amiga computers Made in Germany!

What is it and what can this card?
This is a 100% hobbyist project started in 2019 with the amazing 68030TK accelerator card from Matze and two German computer enthusiasts: hamag and 8 Bit Dreams. Matze gave us some ideas and hints where to start and wrote his excellent cpld code for this card, Hamag done Hardware design and routing, and 8 Bit Dreams was buzzy with building prototypes. We really like Commodore A2000 model and have been working hard to make it more comfortable in daily use. Every person involved did their job to the best of their ability, so, after some attempts and failures, the first prototypes of this card were built and shown on A1k Forum - forum users gave that card a name and so „Dicke Olga“ (Fat Olga) was born.
This card has undergone a number of improvements and now we are proud to present it to you. We really hope You will enjoy using it!


Why Dicke Olga!?
Well, Dicke Olga is actually a north German woman You don't wanna meet in Your life:
she is big, powerful, uncompromising and unrepentant...
just like this card is..!

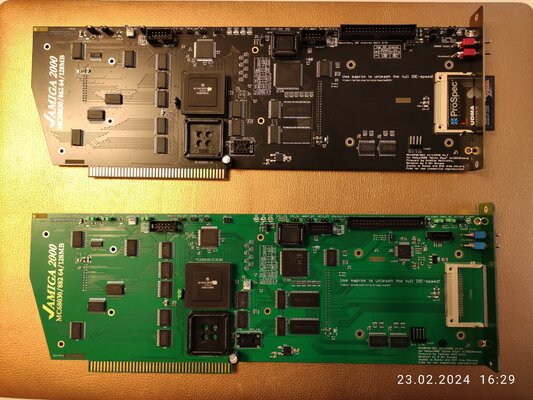

Technical specifications:
CPU: MC68030 or 68EC030, clocked at 25 - 60MHz
FPU: 68881 / 68882 PLCC 25 - 60MHz, may run asynchronous to CPU (with its own oscillator)
Has MapROM function (KS 1.3 is not supported!)
FastRAM (may vary between 64 or 128MB)
BootROM: LIDE or Oktapussy (Oktagon based)

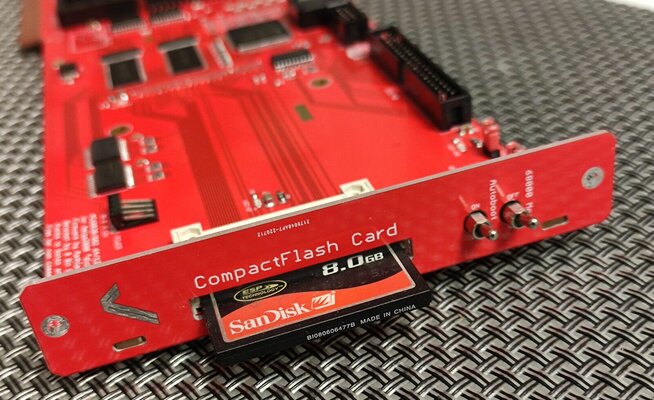

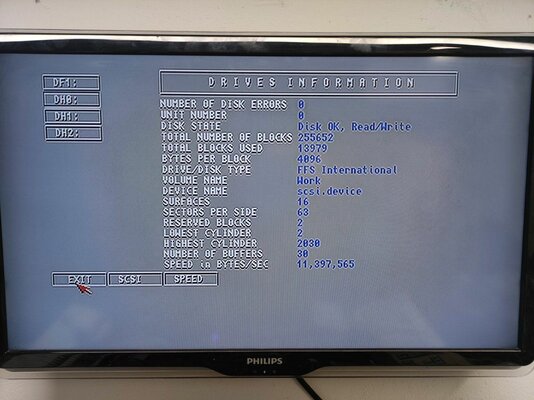

IDE: 40pin, 44pin or CF Slot (default speed is about 6MB/s) may be tweaked by reducing Waitstates up to 11MB/s with MapROM Tool
2x Clockports (1x Fast Clockport, 1x Standard A1200 Clockport)
68000 Fallback mode (stock CPU + IDE + 4MB FastRAM)
Flexible CPU & FPU MHz and other settings etc..

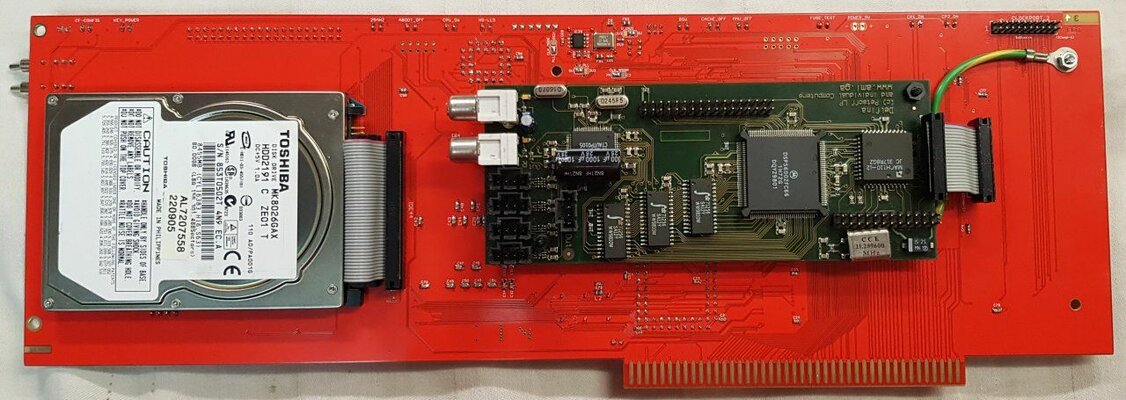

Has 2.5" HDD & Delfina sound card fitting places on the backside:
photo_2022-02-21_00-47-45.jpgIMG_20231112_223151.jpg1699133178436303738804557948844.jpg

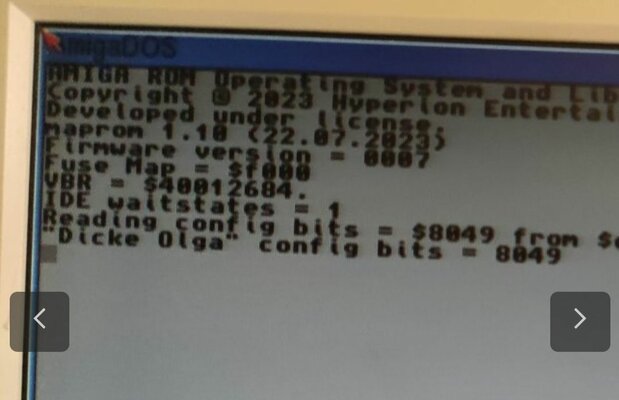

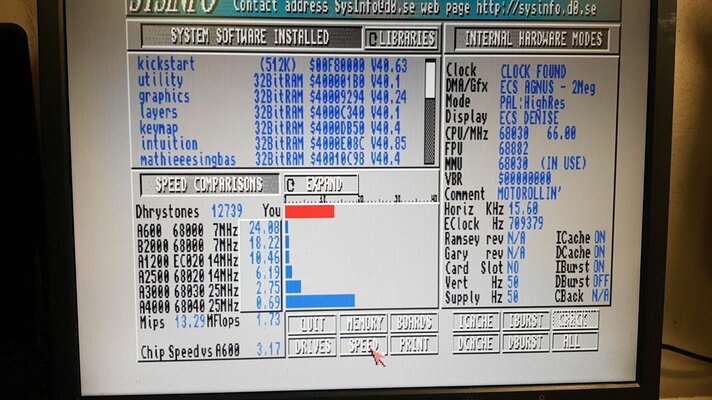

*Pictures represent actual and maximal settings of the card!
*60Mhz is not officially supported because there are no native 60Mhz MC68030 CPUs.
Many CPUs still run stable at 60Mhz, this must be tested, we don’t take any responsibility for damage caused by overclocking! Do it on Your own risk!


*Pictured HDD & Delfina Sound card are NOT included!

System requirements
:
Kickstart 3.1 or greater (KS1.3 will fail because of the memory Adress space!)
An A2000 Computer or (also fits in EATX Board) an Early A2000 Braunschweig Model *(no Fallback mode available on this!)
BUS Fixes released by Commodore are recommended to reach full 60MHz speed!

compatibility with other Zorro cards:
this accelerator do correct config in/out, it was tested with wide range of Zorro cards like:
Freeway USB, Picasso ll, Picasso lV, GBAPII++, Prelude ll, Amiblaster, LAN-IDE - these are working without any issues..
Please keep in mind - we've done tests only with the cards we own, it is although possible that some cards isn't working properly - it's Amiga after all!!!

Known issues:
Some CF Card's doesn't work
Fallback doesn't work if 030 CPU Frequency is set to 30MHz

Where to buy!?
Here is an official source for these cards,
feel free to get one if needed!

Asking price is 250€ for a ready built card equipped with plastic CPU (wit MMU)
(NO FPU), running @50MHZ and 128MB of FastRAM
Or 230€ for the card without CPU/FPU

Fair warning!

despite the fact that the project looks professional, it is a 100% amateur DIY project created by non-professionals. We do not accept/are responsible for any damage caused by this item! NO RETURNS ARE ACCEPTED!
Any litigation will be rejected!
Regards,

8 Bit Dreams

Edit:
FAQ:
Q: i’ve installed accelerator card but display remails black, did i received broken card?
A: before Your card goes on its way - it needs to pass several tests. Following tests are obligatory for each built card:
1. 68030/68000 functional test
2. several rounds of full memory range scan (Amiga Test Kit),
3. Povray rendering test (2h rendering test, to be sure CPU works as it should),
4. IDE connections & CF Slot
5. Clockport 1 & Clockport2 tests are also done.
Card will be shipped only if it passed all of them, so probably there is something else - 68k cpu is missing? wrong position of BSW jumper?

Q: seems my CF card isn’t recognized
A: try other brand CF – some cards just didn’t work (Transcend, for example a known to fail, also some bigger cards (32GB) doesn’t work) Also please check Autoboot switch/jumper position!

Q: ide speed seems to be slow, why?
A: first of all – check blocksize, we recommend to use 4096. Second option would be to use MapTool (see apropriate section in manual)

Q: My card isn’t working @60MHz!!!
A: Well, theoretically it should – all cards purchased with CPU - have passed 60MHz tests, however, it depends on many other factors. Such as correct voltage, (Commodore recommended) fixes, load on the bus, installed Zorro cards, corrosion of the tracks/sockets, battery leakage… Also additional power connector (floppy power connector beneath CF Slot) may be used to get 60MHz stable to work.. Because of all that - card (with CPU) purchased from officials will run quaranteed at 50MHz. 60MHz if You are lucky enough..

Q: Will this card ever be upgraded to 256 or 512 MB RAM?
A: Well, technically it’s posssible, but there was no plans to do it!

Q: Will there be more supported frequencies in the future?
A: The frequency is tied to installed 10MHz clock oszillator, but You can also use 50% frequency jumper (and reach 25MHz by setting 50Mhz/2=25MHz as example)

Q: Will feature XY (sound, graphics, USB, PCI-Express) be added in future revisions?
A: Most probably not. The creator of the card adheres to the principle: "Keep it simple, keep it workable."

Q: i don’t want to spend my money on that card, i own all necessary tools, and can solder it by myself, where can i download gerbers?
A:
Well, You can’t get gerbers right now – these are not released atm. However, we don’t wanna stop someone from building that card – so You can get an empty PCB on A1k.org at a cost + small fee for the creators (so they can continue to work on improvements of that card) and go this interesting journey by yourself.

Q: can i do firmware update at home?
A: yes, all firmwares are available for download, You can do updates at home, but You need Lattice and Xilinx JTAG Programmers to be able to do this.

Q: i don’t want a 030 CPU card, and rather wait for 060, will it be released?
A: 040/060 CPU accelerator isn’t planned so far.

Edit:
Declaring Interest for one board from next available batch with 128MB of FastRAM and CPU/FPU

PM sent
PM was sent, are You still interested?


Attachments

  • OlgaManual_eng1.pdf
    522.4 KB · Views: 81
Last edited:

Rod_cl

New member
Rating - 0%
0   0   0
Joined
Dec 8, 2018
Posts
6
Country
Chile
Region
Santiago
Declaring interest.
Declaring interest!
(Marked as sold/completed by DjCook)

Last edited by a moderator:

ajrade

Active member
AmiBayer
Blogger
Rating - 100%
34   0   0
Joined
Jul 9, 2022
Posts
258
Country
Czechia
Region
Olomouc
Declaring interest.
1piece with CPU
(Marked as sold/completed by DjCook)

Last edited by a moderator:

cgugl

Member
Rating - 100%
12   0   0
Joined
Aug 17, 2013
Posts
57
Country
italy
Region
campania
Declaring interest.
Declaring interest
(Marked as sold/completed by DjCook)

Last edited by a moderator:

SukkoPera

Active member
Rating - 100%
72   0   0
Joined
Nov 24, 2017
Posts
631
Country
Italy
Region
Turin
Declaring interest.
Interested in one, with a question: can the onboard IDE interface be disabled?
(Marked as sold/completed by DjCook)

Last edited by a moderator:

paolopal

Member
Rating - 100%
7   0   0
Joined
Jul 7, 2022
Posts
41
Country
Italy
Region
Naples
Declaring interest.
Declaring interest in 1 piece without CPU/FPU. PM sent soon.
(Marked as sold/completed by DjCook)

Last edited by a moderator:

dava1973

Member
Rating - 100%
7   0   0
Joined
Aug 20, 2020
Posts
49
Country
Switzerland
Region
ZH
Declaring interest.
Declaring interest for 1 board with CPU. Sending PM right away...
(Marked as sold/completed by DjCook)

Last edited by a moderator:

Pythagoras

Member
Rating - 100%
9   0   0
Joined
Sep 14, 2020
Posts
48
Country
Greece
Region
Larissa
Declaring interest for 1 board with CPU.
(Marked as sold/completed by DjCook)

Last edited by a moderator:

Sotos

Member
Rating - 100%
5   0   0
Joined
Dec 17, 2016
Posts
56
Country
USA
Region
Georgia
Declaring interest.
Interested in one board with CPU.
(Marked as sold/completed by DjCook)

Last edited by a moderator:

alama

Member
Rating - 100%
9   0   0
Joined
Jan 22, 2021
Posts
63
Country
France
Region
Paris
Declaring interest in one board with CPU.
(Marked as sold/completed by DjCook)

Last edited by a moderator:

h3kr0

New member
Rating - 0%
0   0   0
Joined
Aug 22, 2023
Posts
15
Country
Czech republic
Region
Moravian region
Declaring interest.
Declaring interest in 1 piece without CPU/FPU. Thank you.
(Marked as sold/completed by DjCook)

Last edited by a moderator:

DjCook

8 Bit Dreams
Blogger
Rating - 100%
316   0   0
Joined
Apr 25, 2016
Posts
2,382
Country
Germany
Region
Bavaria
Ok! that was quick!!
Seems all 10 cards are gone!
Will do next batch soon... Any ideas which color should I pick?🤔

Edit:
Declaring interest.

Interested in one, with a question: can the onboard IDE interface be disabled?
Yes, IDE can be turned off if needed:

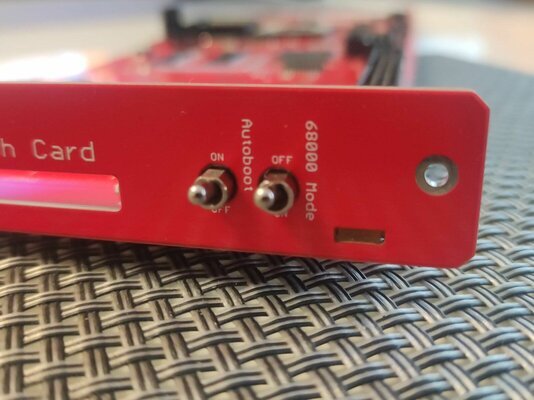

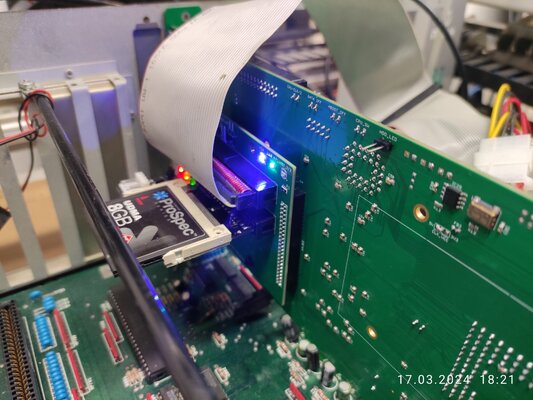

There are two switches on the backside: upper one is Fallback Mode switch ( disabling 030 and letting stock 68000 CPU work)
And the lower is for turning IDE off

There is no reason to do that, to be fair, since onboard IDE is blazing fast. Any other IDE devices can only dream about that speed...

Last edited:

ShAkY

New member
Rating - 0%
0   0   0
Joined
Oct 21, 2023
Posts
1
Country
Denmark
Region
Lille skensved
you say its based on the 68030TK so still no cd/dvd-rom support on the ide port ?

(Yes i have a 68030TK v2)


DjCook

8 Bit Dreams
Blogger
Rating - 100%
316   0   0
Joined
Apr 25, 2016
Posts
2,382
Country
Germany
Region
Bavaria
you say its based on the 68030TK so still no cd/dvd-rom support on the ide port ?

(Yes i have a 68030TK v2)
Please use LIDE BootROM for CD-ROM feature
