Fully tested, and verified, equipped with Herr Doktorr Diskettenlaufwerk interface.

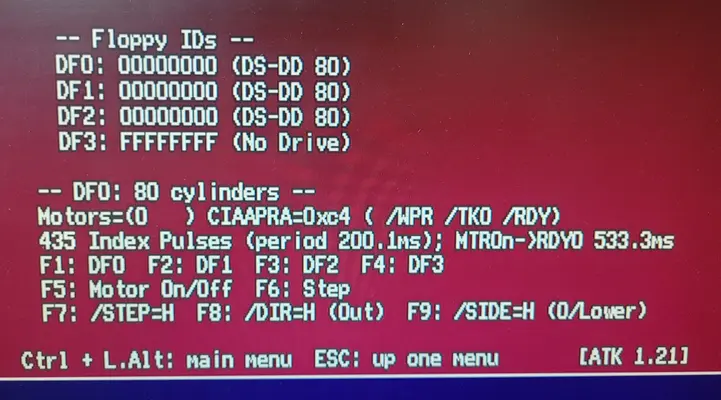

Correct reaction of READY signal upon MTR request (DD floppy in drive DF0) and expected rotation speed of 300RPMs (index pulses period 200ms):

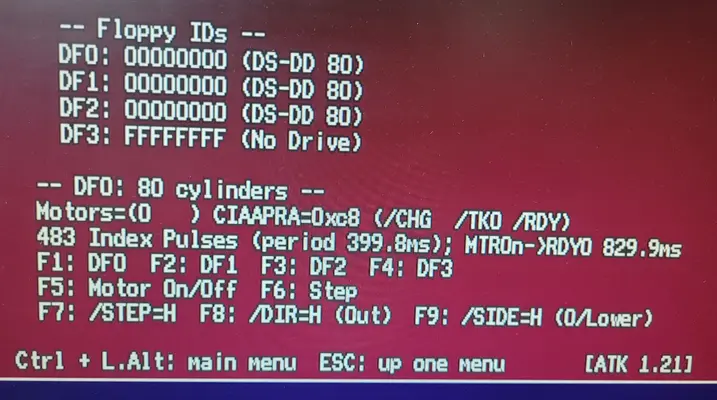

Correct reaction of READY signal upon MTR request (HD floppy in drive DF0) and expected rotation speed of 150RPMs (index pulses period 400ms):
Please note that the DF0: in the photo above is indicating "(DS-DD 80)", just because I did not re-check the DriveID's by exiting and entering floppy drive test in ATK.

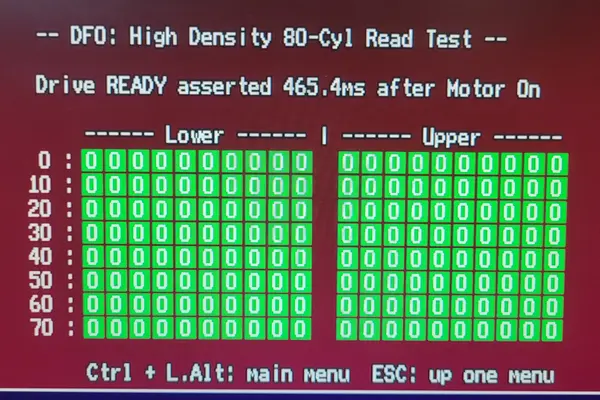

HD floppy read test:

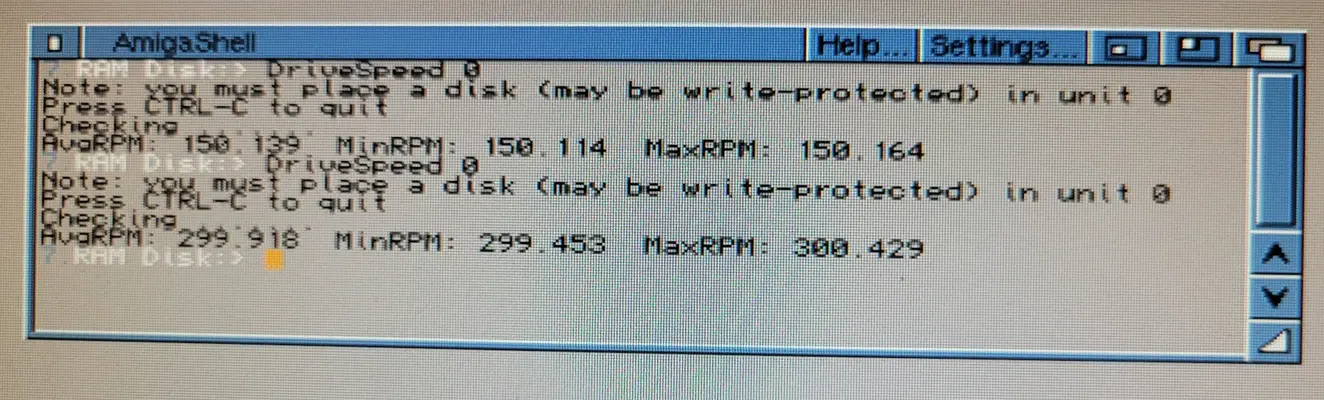

Proper RPM control for DD (300RPMs) and HD (150RPMs) floppies:
Price:6460€+shipping via PP (F&F) or bank transfer.
Correct reaction of READY signal upon MTR request (DD floppy in drive DF0) and expected rotation speed of 300RPMs (index pulses period 200ms):
Correct reaction of READY signal upon MTR request (HD floppy in drive DF0) and expected rotation speed of 150RPMs (index pulses period 400ms):
Please note that the DF0: in the photo above is indicating "(DS-DD 80)", just because I did not re-check the DriveID's by exiting and entering floppy drive test in ATK.
HD floppy read test:
Proper RPM control for DD (300RPMs) and HD (150RPMs) floppies:
Price:
