need help on video out and lcd

Rambo60

New member
Joined
Jan 29, 2015
Posts
42
Country
Australia
Region
nsw

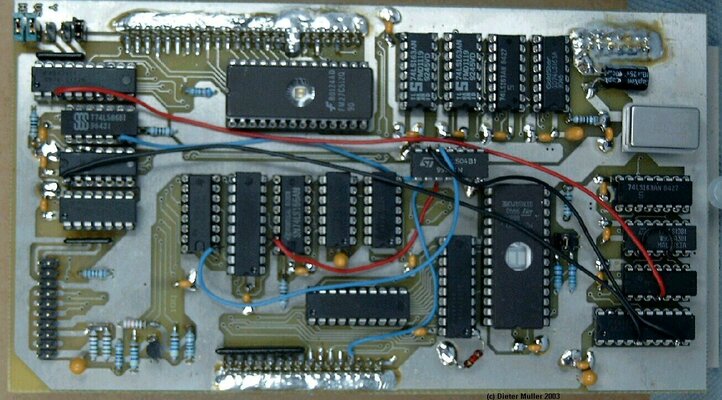

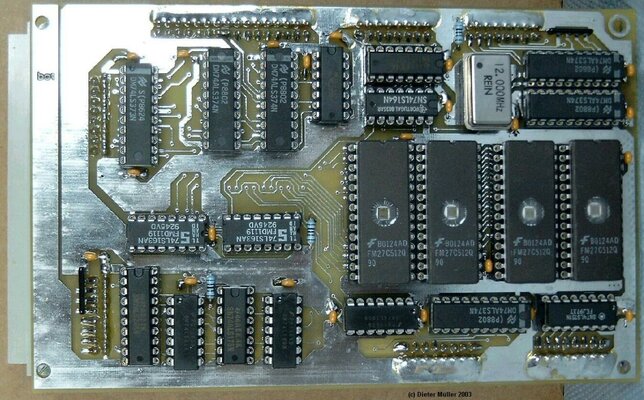

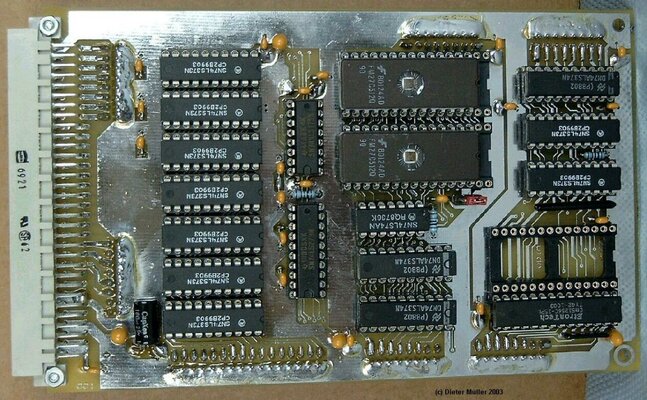

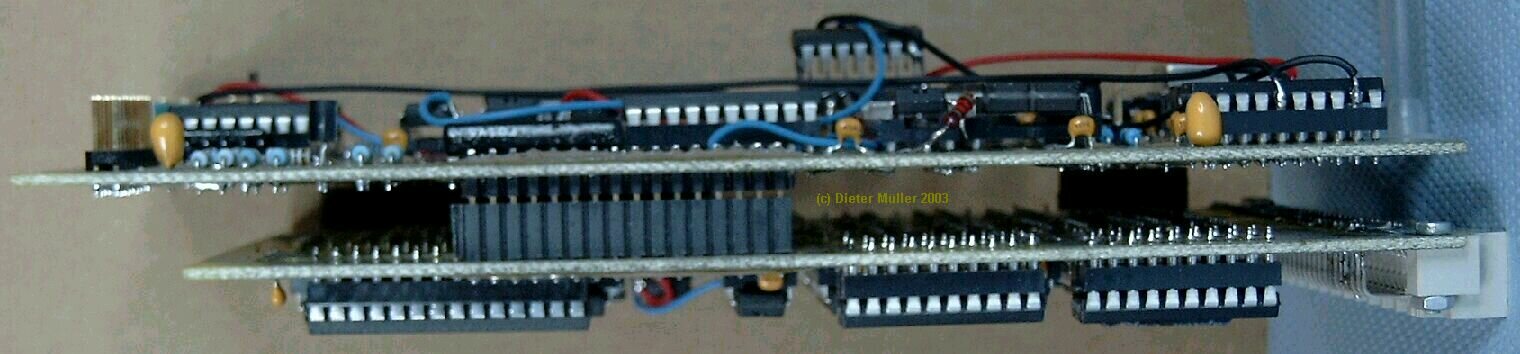

I have a display board from a home made computer made up of ttl and rom just need help on how to connect vga to this board I have some picture is the QVSYNC and the QHSYNC and the XSCL and GND can I connect this to the a VGA monitor this all the detail I can give all I need to no what connection do i need to connect to VGA from the pin connection


Attachments

  • cpu.jpg
    54.4 KB · Views: 0
  • cpu_1.jpg
    201.9 KB · Views: 0
  • cpu_2.jpg
    201.5 KB · Views: 1
  • crt.jpg
    92.9 KB · Views: 0
  • crt_2.jpg
    189.7 KB · Views: 0
Last edited:

Beavis

New member
Joined
Nov 12, 2013
Posts
568
Country
Netherlands
Region
South
A little more information would be useful, can you post some more detailed schematics?


Rambo60

New member
Joined
Jan 29, 2015
Posts
42
Country
Australia
Region
nsw
I am not been rude but all I am asking is in the picture there are pin with names I need to no what pin to connect to a VGA that all I ask more picture is not going to help as this is the schematic of the board


roy_bates

resistance is futile!
AmiBayer
Blogger
Joined
Dec 18, 2011
Posts
8,387
Country
england
Region
birmingham
im wondering if its some kind of composite signal,i cant see anything that indicates vga signals

can you link to the entire schematic please or who made it.

Last edited:

Rambo60

New member
Joined
Jan 29, 2015
Posts
42
Country
Australia
Region
nsw
yes there is VGA QVSYNC and the QHSYNC and the XSCL the board has video out and LCD out this not composite signal

Last edited:

roy_bates

resistance is futile!
AmiBayer
Blogger
Joined
Dec 18, 2011
Posts
8,387
Country
england
Region
birmingham
the thing is i cant see the rgb signals.

can you say what board this is?


Rambo60

New member
Joined
Jan 29, 2015
Posts
42
Country
Australia
Region
nsw
you tell me what this QVSYNC and the QHSYNC and the XSCL it has no RGB the maximite has the same the RGB is color

Last edited:

roy_bates

resistance is futile!
AmiBayer
Blogger
Joined
Dec 18, 2011
Posts
8,387
Country
england
Region
birmingham
what homemade computer is it?
and,what board is this in reference to?

im just tying to work out what this is

EDIT: wait,is this anything to do with the MO2 project? or maybe i have this confused with the other thread you have open?

Last edited:

Rambo60

New member
Joined
Jan 29, 2015
Posts
42
Country
Australia
Region
nsw
yes that right m02 project do you no this project i had this project for about 4 year in a box

Last edited:

Beavis

New member
Joined
Nov 12, 2013
Posts
568
Country
Netherlands
Region
South
Who said you're being rude, all I was asking was to come up with some more information, and while you're at it, try to make some better quality pics too.


roy_bates

resistance is futile!
AmiBayer
Blogger
Joined
Dec 18, 2011
Posts
8,387
Country
england
Region
birmingham
yes,a little,i think it was an attempt to make a 6502 compatible cpu in 74 series logic(it did actually work).the design you have is from dieter muller i think from the early 90's

do you have the entire project? including the lcd driver board(not sure ive seen the entire board as i could not see the back of the lcd itself)

lets try to all relax a little,im excited because im not sure how much of this actually survived today.


Rambo60

New member
Joined
Jan 29, 2015
Posts
42
Country
Australia
Region
nsw
yes roy I have all the project and hex files for m02 and the person dieter muller he has pass away and he from germany and there is a person I know is dennis in germany he told me

- - - Updated - - -

Last edited:

roy_bates

resistance is futile!
AmiBayer
Blogger
Joined
Dec 18, 2011
Posts
8,387
Country
england
Region
birmingham
can you take a picture of the rear of the lcd display please,the one in the project
or a make and model of the display in the project

Last edited:

Rambo60

New member
Joined
Jan 29, 2015
Posts
42
Country
Australia
Region
nsw
roy I have all the picture of M02 and other board i just up load some new picture

Last edited:

roy_bates

resistance is futile!
AmiBayer
Blogger
Joined
Dec 18, 2011
Posts
8,387
Country
england
Region
birmingham
do you have the lcd display this machine was used with at all?


Rambo60

New member
Joined
Jan 29, 2015
Posts
42
Country
Australia
Region
nsw
yes roy I have all the board and picture and PCB artwork I just found out that the lcd display pin connect only to a LCD not a VGA monitor but the QVGA LCD Monochrome I can not fine any for sale

Last edited:
