Ratte`s Auto Monitor Switch, Help needed

[cyberstormer]

[FONT=&quot]Hello There,

Need help, somehow detached my rattte monitor switch cable from the CIA adapter,[/FONT]
[FONT=&quot]If someone has such an adapter and cable , can tell me how to solder?

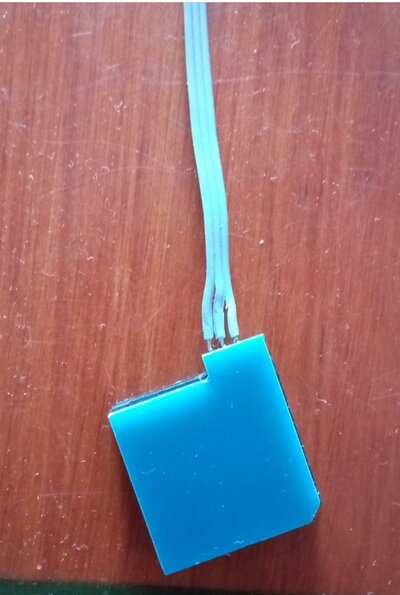

[/FONT]Link to Picture: https://photos.app.goo.gl/Y1AVMfUgWEH2EHjK7

[FONT=&quot]1 to A?[/FONT]
[FONT=&quot]2 to B?[/FONT]
[FONT=&quot]3 to C?[/FONT]
[FONT=&quot]or[/FONT]
[FONT=&quot]1 to C?[/FONT]
[FONT=&quot]2 to B?[/FONT]
[FONT=&quot]3 to A?
[/FONT]
[FONT=&quot]Second question[/FONT]
[FONT=&quot]I have an Indi MK2CR, the Ribon cable that I bought from Highpuff om Amibay has no notch. How am I supposed to plug into Indi? Red vein to red vein ?[/FONT]
[FONT=&quot]Cybervision PPC Cable, can i plug 1:1 ?[/FONT]

Link to Picture : https://photos.app.goo.gl/REtca9SdEVHTBugS6

[FONT=&quot]If someone has a picture that would be nice. I want to build into my A4000t, don't want to do anything wrong.[/FONT]
[FONT=&quot]A long time ago I installed A600 with Vampire, without any problems.[/FONT]
[FONT=&quot]But now I'm not sure anymore.[/FONT]



[AlicePPC]



[cyberstormer]

Thank You,

it's meant :

1 to C?
2 to B?
3 to A?

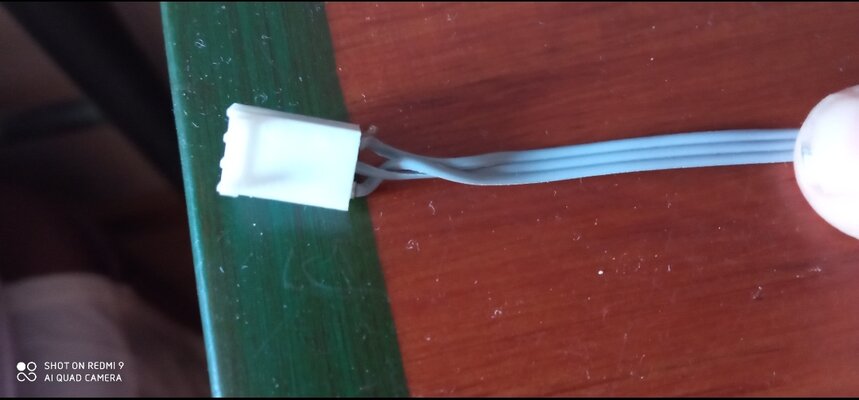

is it possible to photograph both ends on one picture please ?



[AlicePPC]

para obtener más información, consulte aquí:

https://www.amibay.com/showthread.php?79610-Ratte-Auto-Monitor-Switch-Batch-2

https://www.ikod.se/rams-cia-adapter/



[AlicePPC]

correct
1 a C
2 a B
3 a A

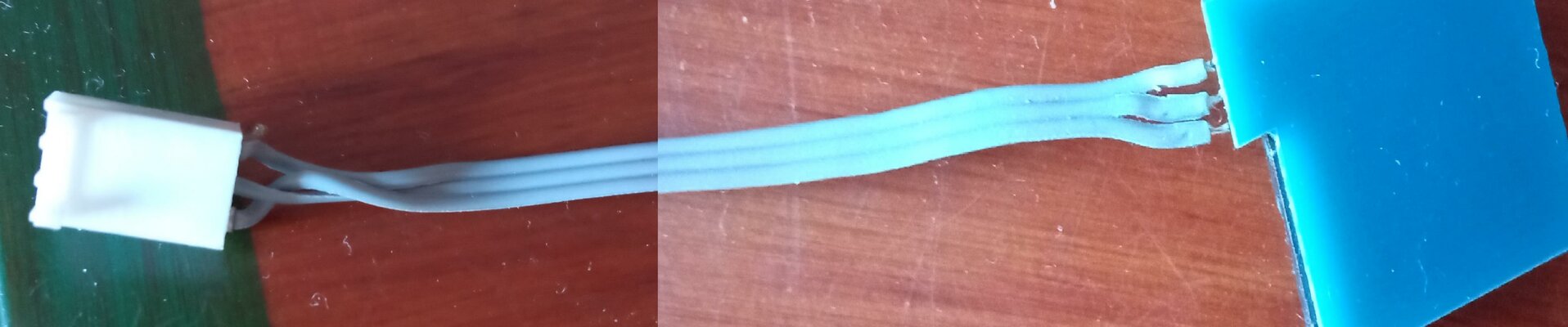

anyway this night i can take full foto



[cyberstormer]

For this Question i dont find any answer,,,
I have an Indi MK2CR, the Ribon cable that I bought from Highpuff om Amibay has no notch. How am I supposed to plug into Indi? Red vein to red vein ?



[AlicePPC]

i guess is red with red orientation, but why you dont ask to highpuff by pm ??



[highpuff]

You can find the orientation on page 11 in https://www.ikod.se/wp-content/uploads/2016/04/Ratte-InstallationGuide-Ed3.pdf The cable should be pointing upwards from the Amiga mainboard as shown in the picture.

Tried to find IDC pitch 2.0 with orientation pin without success sadly enough.



[cyberstormer]

i guess is red with red orientation, but why you dont ask to highpuff by pm ??

Not Correct,

Page 14 helped me,
I was wrong because the red cable marking is opposite.
So, just ignore cable marking / orientation.

Thanks to both of you.

Btw, My A4Kt is recapped with ceramic capacitors, so no modification is required for Indi MK2cr Insllation.
