Reversed row IDE 40 pin connectors?

Ed.D

Active member
Blogger
Joined
Aug 21, 2010
Posts
1,543
Country
United Kingdom
Region
Bristol
Hi all , I've been googling but I'm unable to find a reversed IDE connector which I would like to build a ROM extender with.

If you look at the internal ribbon crimps on an IDE connector they are offset across the rows and pin 1 is on the lower row e.g.

| - - - - - -
|- - - - - -
1


...but I would like to find a connector where the rows are oppsosite ,like this:


1
|- - - - - -
| - - - - - -


Are these made/sold by anyone?

TIA,
Ed.


chiark

AmiNerd
Joined
Jan 22, 2008
Posts
2,688
Country
United Kingdom
Region
Yorkshire
If you fit the connector facing on the other side, it'll be in the configuration you need... I can't think of any other way as you won't get IDC connectors that work another way around...

Or get a set of pin headers and use two cables with female connectors, and connect 'em together with the pin headers...

You can buy cable and IDC connectors from many places :D


Ed.D

Active member
Blogger
Joined
Aug 21, 2010
Posts
1,543
Country
United Kingdom
Region
Bristol
Thanks Chiark,

Unfortunately turning a standard connector around in any direction will not work, it will always give the same result. If I put it on the other side of the cable I'd have to bend the cable back on itself to plug it in, which is also the same. :)

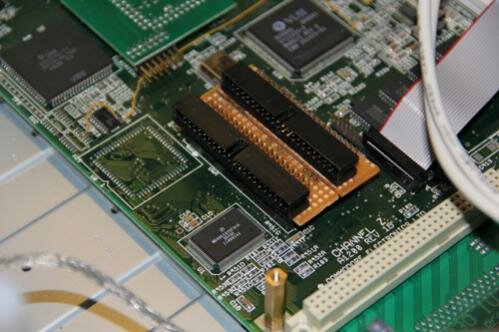

This is actually to move my Fast ATA mk 3 away from the ROM headers to allow room for an Indivision AGA.

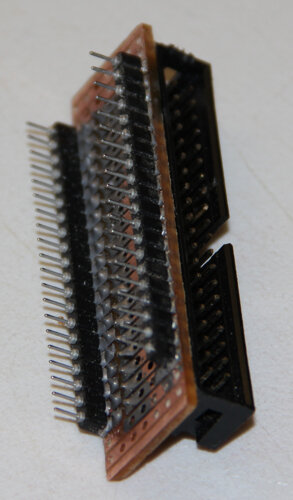

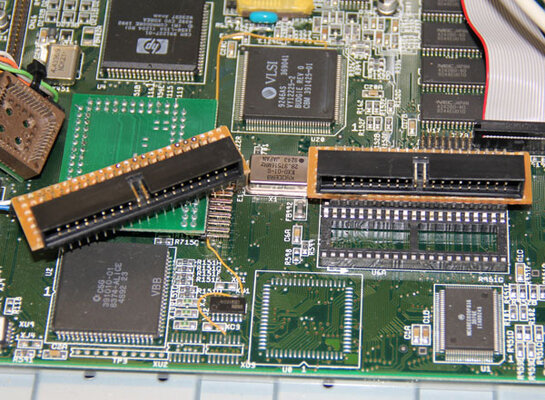

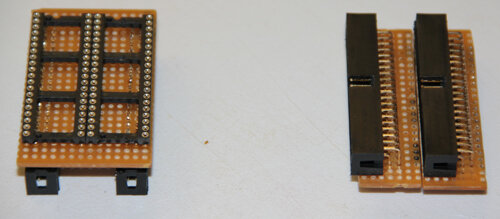

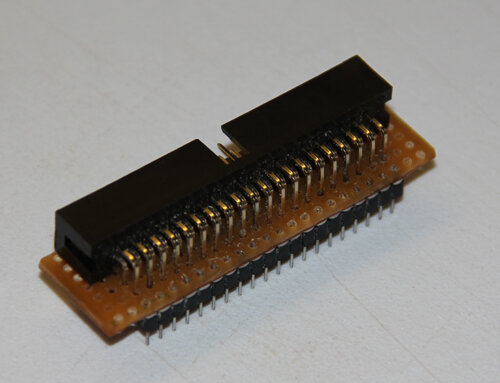

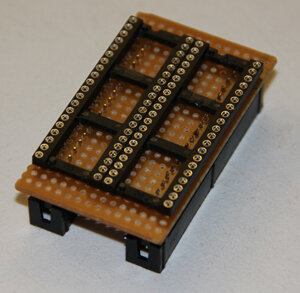

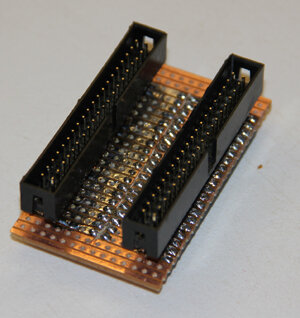

Added some pics for reference.

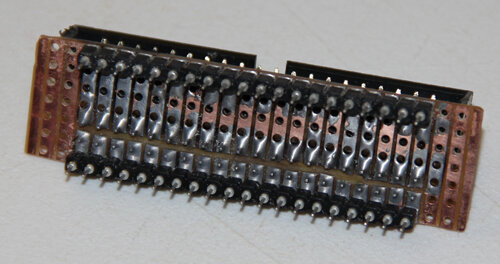

Interesting point about the pin headers, hadn't thought about that. Trying to figure that one out at the moment. I could always solder the wires directly between my strip boards I suppose.


Attachments

  • con1.jpg
    19.5 KB · Views: 2
  • con2.jpg
    25.6 KB · Views: 1
  • con3.jpg
    21 KB · Views: 0
  • con4.jpg
    15.4 KB · Views: 0
  • con5.jpg
    15.9 KB · Views: 1
  • con6.jpg
    16.2 KB · Views: 0
  • con7.jpg
    32.7 KB · Views: 0
  • con9.jpg
    80 KB · Views: 0
  • con8.jpg
    78.1 KB · Views: 2
Last edited:

Ed.D

Active member
Blogger
Joined
Aug 21, 2010
Posts
1,543
Country
United Kingdom
Region
Bristol
@Pymerone, I'm pretty sure that would retain the same pinout. Thanks tho :)


skippy

New member
Joined
Jun 3, 2008
Posts
106
Country
BRISTOL, UK
Region
Avon

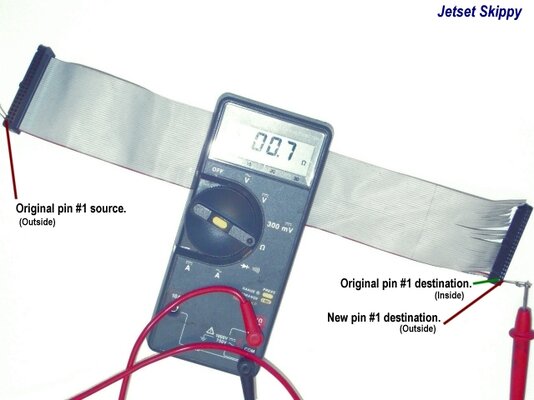

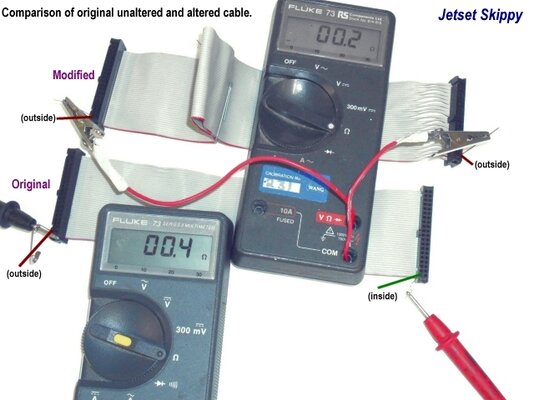

JetSet's Modified IDE cable.

JetSet's Modified IDE cable.

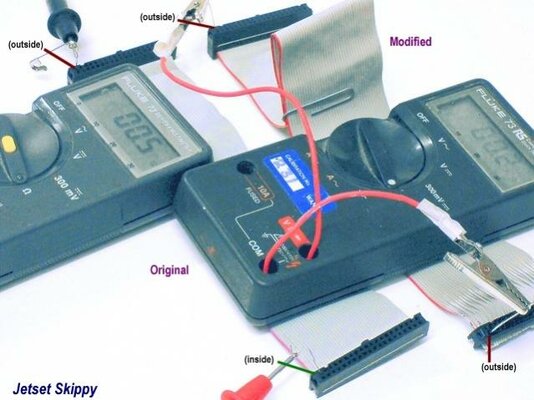

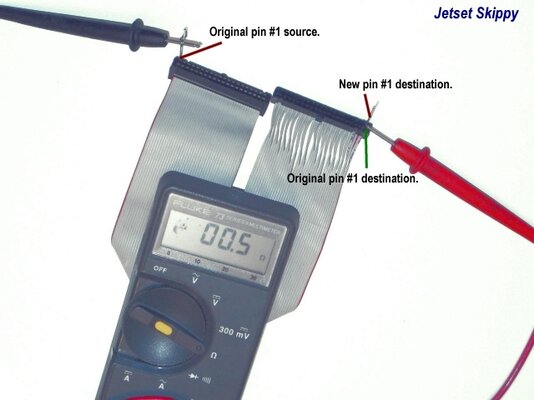

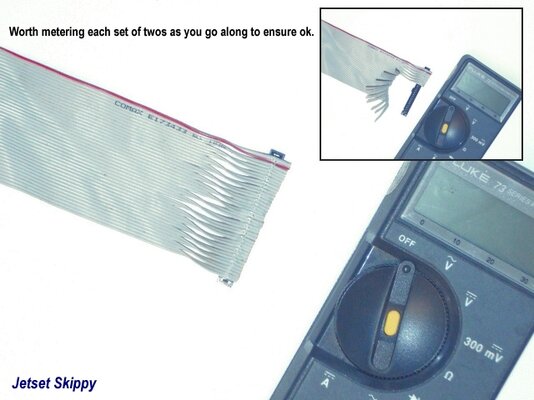

See if this helps you Ed.D all it requires is an element of patience.

Regards,

Skippy.


Attachments

  • IDE_Ribbon 001.jpg
    IDE_Ribbon 001.jpg
    43.2 KB · Views: 10
  • IDE_Ribbon 002.jpg
    IDE_Ribbon 002.jpg
    36.5 KB · Views: 6
  • IDE_Ribbon 003.jpg
    IDE_Ribbon 003.jpg
    41.5 KB · Views: 3
  • IDE_Ribbon 004.jpg
    IDE_Ribbon 004.jpg
    33.5 KB · Views: 5
  • IDE_Ribbon 005.jpg
    IDE_Ribbon 005.jpg
    44.5 KB · Views: 5
  • IDE_Ribbon 006.jpg
    IDE_Ribbon 006.jpg
    42.1 KB · Views: 4

salaxi54

Incoming ASROC!
AmiBayer
Blogger
Joined
Apr 3, 2009
Posts
3,864
Country
GREECE
Region
Athens
Awesome thinking from both Ed.D and skippy! The only thing i would worry about is the length of the cabling. Dunno how much it would affect the signals...
