**************OUT OF STOCK****************

This is the 2nd run of PCBs/kits for the Tapuino created by sweetlilmre.

Look in the forum for more info :https://www.amibay.com/showthread.php?63166-Tapuino-the-20-C64-Tape-Emulator

The new PCBs v1.5 will have some small mods.
I will order 20 PCBs by end February, so PCBs should be ready to ship in 3-4 weeks (21th-28th March)

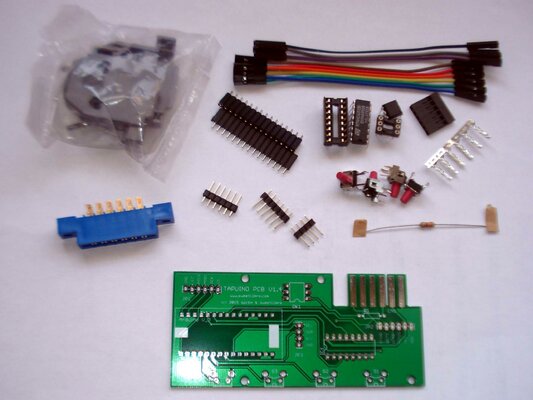

The kit includes all the components except the arduino, SD shield and LCD, dirty cheap on ebay.
In this way you only need a piece of 6 pole cable and this 3 components, and of course soldering skills to assemble.
The kits with box will also include the PP9 box and the screws needed to fix LCD and PCB to box, but you need to drill the holes for LCD, buttons, cable & datassette input.

The price for PCB only is 6 Euros +pp
The price for the kit without box is 18 Euros +pp
The price for the kit including the box is 25 Euros +pp

PP registered for Europe is 6 Euros for 1-2 PCBs, 7 Euros for 3-5 PCBs and 11 Euros up to 25 PCBs.
PP registered for the rest of the world is 7 Euros for 1-2 PCBs, 8 Euros for 3-5 PCBs and 15 Euros up to 25 PCBs.

If someone wants ordinary mail (no tracking) prices are 3,4,9 and 4,5,12. Take it at your own risk.

PP registered for Europe is 7 Euros for 1 kit. Untracked 4 Euros.
PP registered for the rest of the world is 8 Euros for 1 kit. Untracked 5 Euros.

PP registered for Europe is 11 Euros for up to 3 kit+BOX. Untracked 9 Euros.
PP registered for the rest of the world is 15 Euros for up to 3 kit+BOX. Untracked 12 Euros.

Payments with Paypal gift. If someone wants paypal invoice prices will increase to cover paypal fees, ask for price please.
Please remember to send me your postal address.

The box (PP9) is available in black&ivory, my local supplier only has black (need to order in ivory but coud take long), could be included, but is quite easy to find:
http://www.supertronic.com/en/distributor_network
http://www.evatron.com/index.php?pag=product&cid=10&sid=58&pid=880&l=2

I put the users that declared interest in the 1st batch thread.

UserCountryPCBKITKIT+BOXPricePaidShippedReceived
CrytonUK136YesRR036634756ESYes
c64newItaly326.5YesRR036634402ESYes
nkaryGreece136YesRR036592937ESYes
uunekCzech Republic325YesRR036592954ESYes
byeniTurkey112+3.50YesRR036634265ESYes
JuriItaly136Yes RR036593504ESYes
amigo-mexicanoMexico127.50YesRR036634138ESYes
Tuxbar81France136YesRR036592923ESYes
MorulakGermany138YesRR035635769ESYes
D_LFinland1142YesRR036634685ESYes
bazUK136YesRR036593447ESYes
RetroHaudegenDeutschland1 Assembled59
JuriItaly112YesRR036592968ESYes
BulesteUK136YesRR031662199ESYes
HauserAustria1 Assembled59YesRR036594195ESYes

[/TR]
Thanks to all for support.(y)


Attachments

  • DSC03546c.jpg
    172.2 KB · Views: 11
  • Tapuino PCB 1.5.png
    Tapuino PCB 1.5.png
    20 KB · Views: 14
Last edited:

spcbm

Member
Rating - 100%
70   0   0
Joined
Sep 20, 2014
Posts
521
Country
Spain
Region
Barcelona
Interested in one full kit with box, please.

Thanks!
OK will update list and PM tomorrow, thanks

- - - Updated - - -

BOM FOR TAPUINO

Well appart from the PCB, Arduino, LCD & SD card shield and a piece of 6 pole cable, you will need:


PartQTYValue
IC1174HC4052
SK1116PIN DIP SOCKET
SK2140 pin Female pin header (Use 2x15 for arduino)
JP1,JP2,JP3140 pin male pin header (Use 6+6+4=16 pins)
XP1,XP3140 pin Female to female dupont jumper wire (Use 6+4=10)
XP216 Pin Dupont Cable Housing Female + PINS (For JP2)
CN21Card edge connector female 2x6 pin, 3.96mm (For C64 datassette port)
CN2C1DB15 plastic cover for CN2
OK11optocoupler 4N35
SK316 PIN DIP SOCKET
R11Resistor 330 or 470 ohms 1/4W 5%
S1, S2,S3,S44Tactile switch 8.35mm RED RS 758-2007 DIGIKEY 450-1658-ND

Add also C1
electrolytic capacitor 47 MF/25 Volts



All this will be included in the kit.
The switches can also be the SKHHLSA010 from Alps or DTSA-65R from Diptronics.

The box recommended for this is Supertronic PP9, I have put a link in the first post.

Assembly of the first unit finished with box. Quite difficult to fit all inside.
I will give more details when I have time, in the meantime look at the pictures.:wink:

http://s587.photobucket.com/user/kop...%20batch/story
