I'm going to do a first run of 10 PCBs for the Tapuino created by sweetlilmre.

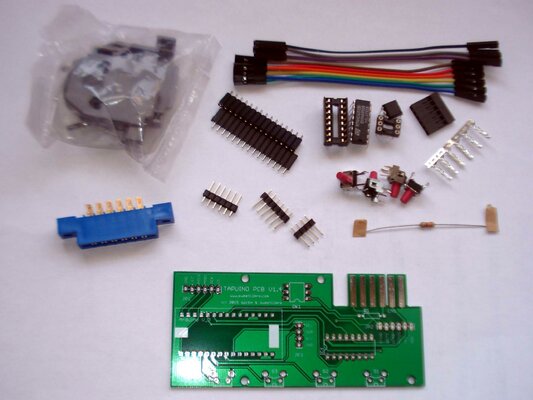

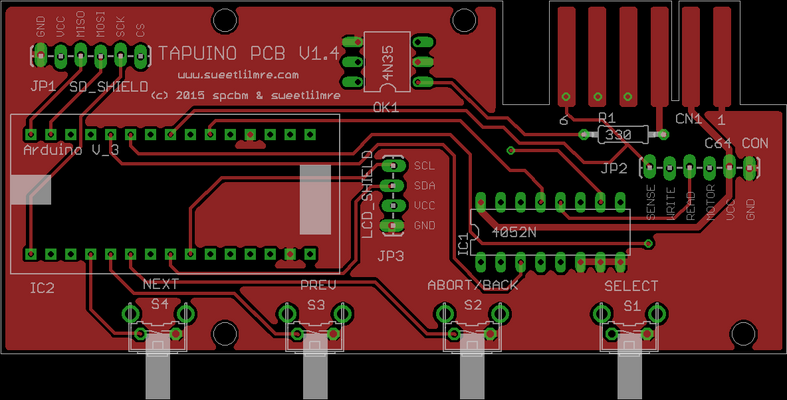

Tapuino PCB v1.4.pngDSC03546c.jpg

Look in the forum for more info :https://www.amibay.com/showthread.php?63166-Tapuino-the-20-C64-Tape-Emulator

I reserve 2 PCBs for me and 1 for sweetlilmre.
The other 7 I will put for sale once assembled and tested the first unit. I will also put for sale a complete unit assembled (35 Euros+pp)

I was planning also to make a kit including all the components except the arduino, SD shield and LCD, dirty cheap on ebay.
In this way you only need a piece of 6 pole cable and this 3 components, and of course soldering skills to assemble.

The price for PCB only is 5 Euros +pp
The price for the kit without box is 16 Euros +pp
The price for the kit including the box is 21 Euros +pp

PP registered for Europe is 6 Euros for 1-2 PCBs, 7 Euros for 3-5 PCBs and 11 Euros up to 25 PCBs.
PP registered for the rest of the world is 7 Euros for 1-2 PCBs, 8 Euros for 3-5 PCBs and 15 Euros up to 25 PCBs.

If someone wants ordinary mail (no tracking) prices are 3,4,9 and 4,5,12. Take it at your own risk.

PP registered for Europe is 7 Euros for 1 kit. Untracked 4 Euros.
PP registered for the rest of the world is 8 Euros for 1 kit. Untracked 5 Euros.

I will calculate PP for kits + box later.

Payments with Paypal gift. If someone wants paypal invoice prices will increase to cover paypal fees, ask for price please.
Remember to send me your postal address.

The box (PP9) is available in black&ivory, my local supplier only has black (need to order in ivory but coud take long), could be included, but is quite easy to find:
http://www.supertronic.com/en/distributor_network
http://www.evatron.com/index.php?pag=product&cid=10&sid=58&pid=880&l=2

The first batch orders for PCBs only are ready to ship, so you can pay now, ask for details.

I put the users that declared interest in the original Tapuino forum.

UserCountryPCBKITKIT+BOXPricePaidShippedReceived
iainjhUK123Yes26/2/15Yes
TomseDenmark216Yes24/2/153/3/15
freaktmpGreece1 Assembled45Yes2/3/1511/3/15
kubinoSlovakia111Yes23/2/1527/2/15
protekFinland18Yes23/2/1527/2/15
fatbob_gbUK216Yes23/2/153/3/15
Pluto63Greece132Yes27/2/154/3/15


This will end this first PCBs batch, confirmed that freaktmp wants the assembled unit.

First batch of PCBs received and assembled the first unit, READY TO SHIP PCBs only orders.
Please send a PM asking for details to pay and your postal address or any question.

The 2nd batch will take longtime, 3-6 weeks at least, and I can´t assure that prices are the same, I will open a new thread.

Thanks to all for support.(y)

Last edited:

protek

"Takai desu ne." -"Jinsei da."
Rating - 100%
67   0   0
Joined
Feb 17, 2008
Posts
4,001
Country
Finland
Region
Oulu, Pohjois-Pohjanmaa
Declaring interest to one PCB, thanks!


Cryton

New member
AmiBayer
Rating - 100%
103   0   0
Joined
Feb 8, 2013
Posts
770
Country
england
Region
Leicestershire
Interested in 1 kit with the box.

This is a really cool project, I've following it since the start and it's great it's reached this point :)


c64new

Member
Rating - 100%
2   0   0
Joined
Jan 7, 2014
Posts
70
Country
Italy
Region
center
Last edited:

spcbm

Member
Rating - 100%
70   0   0
Joined
Sep 20, 2014
Posts
521
Country
Spain
Region
Barcelona
First batch of PCBs shipped yesterday from HK, should arrive in 2-3 weeks.

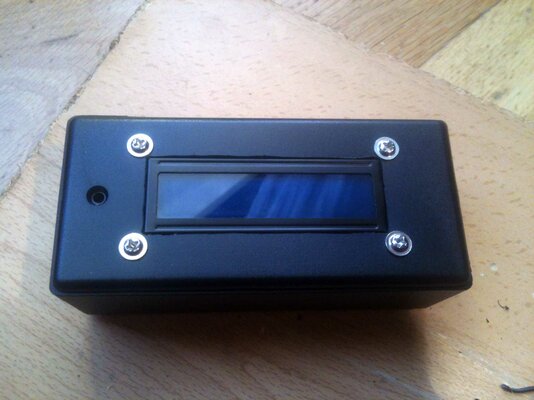

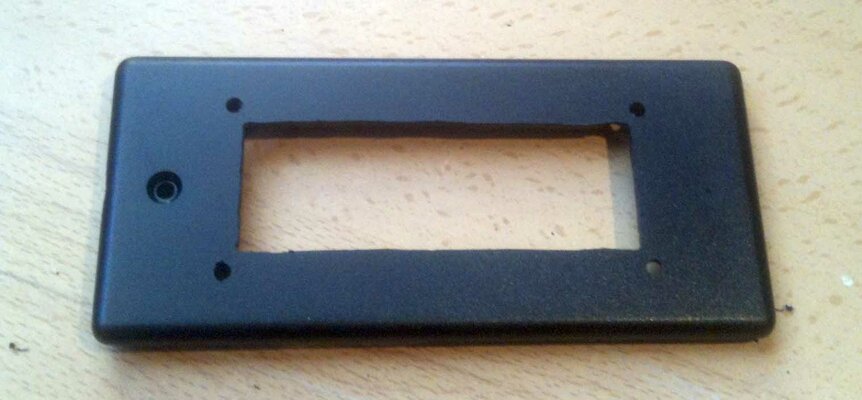

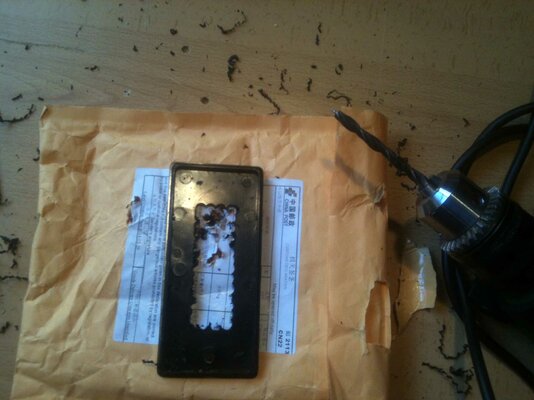

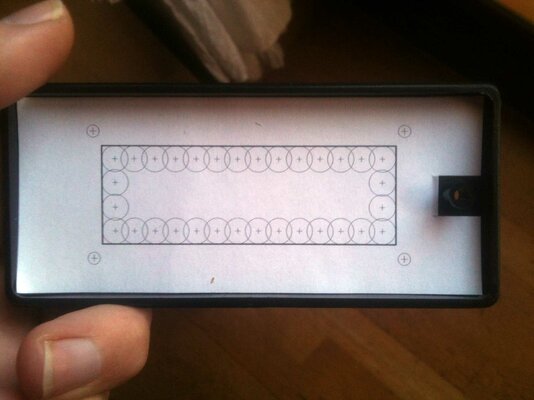

Meanwhile I was making the rectangular hole for LCD with the help of a guide for centering holes.


The finish is not very polished but my mechanical skill are limited, and the only tools: drill and lime.
Must be very carefull to hold the cover when drilling.
Will look for black screws or put a black vynil to cover them.

Last edited:

spcbm

Member
Rating - 100%
70   0   0
Joined
Sep 20, 2014
Posts
521
Country
Spain
Region
Barcelona
BOM list for Tapuino

BOM list for Tapuino

Well appart from the PCB, Arduino, LCD & SD card shield and a piece of 6 pole cable, you will need:

PartQTYValue
IC1174HC4052
SK1116PIN DIP SOCKET
SK2140 pin Female pin header (Use 2x15 for arduino)
JP1,JP2,JP3140 pin male pin header (Use 6+6+4=16 pins)
XP1,XP3140 pin Female to female dupont jumper wire (Use 6+4=10)
XP216 Pin Dupont Cable Housing Female + PINS (For JP2)
CN21Card edge connector female 2x6 pin, 3.96mm (For C64 datassette port)
CN2C1DB15 plastic cover for CN2
OK11optocoupler 4N35
SK316 PIN DIP SOCKET
R11Resistor 330 ohms 1/4W 5%
S1, S2,S3,S44Tactile switch 8.35mm RED RS 758-2007 DIGIKEY 450-1658-ND


All this will be included in the kit.
The switches can also be the SKHHLSA010 from Alps or DTSA-65R from Diptronics.

The box recommended for this is Supertronic PP9, I have put a link in the first post.
The kits with box will also include the screws needed to fix LCD and PCB to box, but you need to drill the holes for LCD, buttons, cable & datassette input.

I need to receive the PCBs and check.

I have some card edge connectors (CN2) for C64 datassette port , as I use them for a datassette emulator kit (MP32C64).
Also I think I have some spare switches, but need to check.

I think that's all, but not really sure.

Last edited:

Pluto63

Member
Rating - 100%
24   0   0
Joined
Oct 11, 2012
Posts
256
Country
Greece
Region
Athens
Would like to change my reservation from one pcb to a complete kit including box. Local electronics components shops drove me mad lately. Thank you.


c64new

Member
Rating - 100%
2   0   0
Joined
Jan 7, 2014
Posts
70
Country
Italy
Region
center
Well appart from the PCB, Arduino, LCD & SD card shield and a piece of 6 pole cable, you will need:

PartQTYValue
IC1174HC4052
SK1116PIN DIP SOCKET
SK2140 pin Female pin header (Use 2x15 for arduino)
JP1,JP2,JP3140 pin male pin header
XP1,XP3140 pin Female to female dupont jumper wire
XP216 Pin Dupont Cable Housing Female + PINS (For JP2)
CN21Card edge connector female 2x6 pin, 3.96mm (For C64 datassette port)
CN2C1DB15 plastic cover for CN2
OK11optocoupler 4N35
SK316 PIN DIP SOCKET
R11Resistor 330 ohms 1/4W 5%
S1, S2,S3,S44Tactile switch 8.35mm RED RS 758-2007 DIGIKEY 450-1658-ND
------------>[CUT]
I believe that the TTL 74HC4052 can be replaced with similar CMOS CD4052, MC14052, HEF4052, HCF4052, easier to find and with less power.
If I can I will do some tests ...
Regards

Last edited:

spcbm

Member
Rating - 100%
70   0   0
Joined
Sep 20, 2014
Posts
521
Country
Spain
Region
Barcelona
I believe that the TTL 74HC4052 can be replaced with similar CMOS CD4052, MC14052, HEF4052, HCF4052, easier to find and with less power.
If I can I will do some tests ...
Regards

I used the 74HC4052 because it was in my local shop, but all this should work also.


c64new

Member
Rating - 100%
2   0   0
Joined
Jan 7, 2014
Posts
70
Country
Italy
Region
center
@spcbm
Ok, but I have already a MOS HCF4052BE (STMicroelectronics) and then maybe I'll try this. When will the circuit boards put a socket on 4052 so I will be able to change it if necessary ...
Thanks for your reply!


spcbm

Member
Rating - 100%
70   0   0
Joined
Sep 20, 2014
Posts
521
Country
Spain
Region
Barcelona

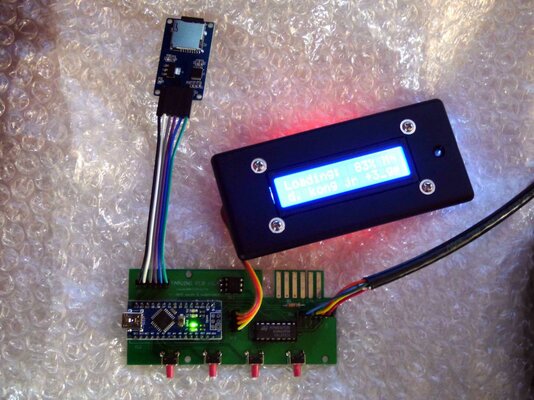

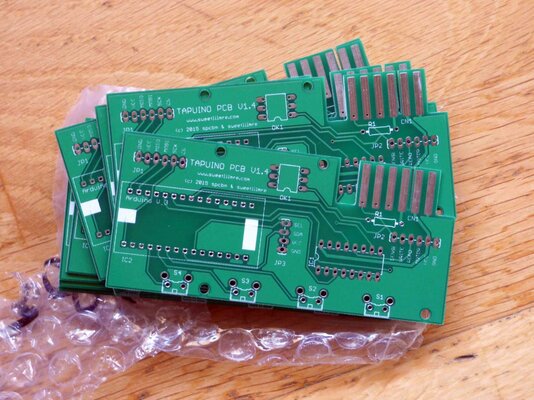

Received first batch of PCBs and assembled the first unit to test.
