Hey! Hope you're all doing fine,
coming up with the project I've built recently-
Zorro LAN IDE cards with custom made brackets:

What is it!?
It's a small but powerful Network card for Amiga Computers designed by Matze & buggs
This card has autosense function and can work in both- Zorroll & Zorrolll Amiga systems,
It also has an IDE Interface & Clockport on it

Network:
The FastEthernet part is based on a ENC624J600 LAN chip and runs with SANAII driver.
Zorro2 variant can transfer up to 3.5mb/s at most, while Zorro3 variant has a significantly faster LAN<->Amiga interface of 6-7mb/sec. Please note that these RAW data transfer numbers are not the only factor in LAN performance on Amiga and that the actual observed speeds with TCP transfers are in the range of 1-2 MB/s (depending on IP stack and CPU used!)

IDE:

IDE part is based on Oktagon AT design, has its own fully autoconfig Bootrom,
works on Kickstarts from 1.3 to 3.2.2.1
Comes with a switchable DualROM: Oktapussy / LIDE BootROM
LIDE supports drives up to 2TB, also atapi CD-ROMs are supported
more information about new LIDE ROM may be found here:
May be used to connect IDE CD-ROM or additional storage media for example..

Clockport:
it's so called fast Clockport
is compatible to A600/A1200 ones but resides at a different address range:
$b90000

this offer has custom made Breakouts with metal slots shown above these fits perfectly in any Big box amiga,

there is, however, also another interesting breakout for A2000 Amiga model:

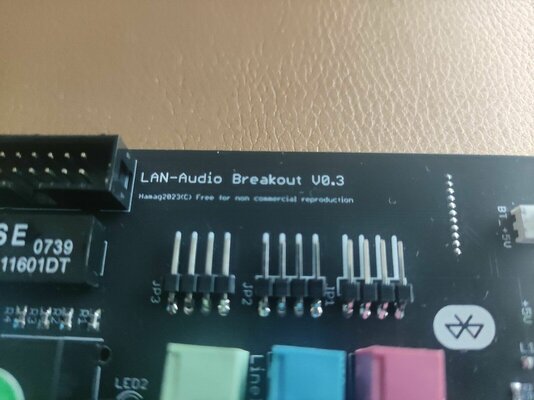

this one has Network-, but also Audio connectors & Bluetooth transmitter module that may do wireless audio output to Your Bluetooth equipped speakers or headphones.
(works only as audio transmitter no data transfers are possible)
This one was designed by hamag to be used with Delfina Flipper or any other sound card installed in Your system

asking price:
I'm asking 110€ for the card with standard breakout, or 135€ for the card with Network/audio breakout Module
shipping is not included and may be paid separately!

Disclaimer
:
Please be aware that this is 100% hobbyist project! No returns are accepted!
use it under your own responsibility.
Only You is responsible for checking the correct position and functionality of your board and the compatiblity of the system You use.

By using this project You agree that I cannot be held responsible if it will destroy any of your devices, damage your computer, burn down your house or whatever.

latest driver is attached - please use 2.10 or this one for reliable function of the card!
best regards,

DjCook

Edit: Ok, payment details have been sent to:
@Ntsimouris, @Neztik, @jkdsteve

Also user @Xanxi has got PM - he is interested in multiple items in one package


Attachments

  • zlanide_network_211.zip
    27 KB · Views: 33
Last edited:

witchdoctor75

Member
Rating - 100%
6   0   0
Joined
Aug 12, 2021
Posts
130
Country
United States
Region
OR
Declaring interest.
Declaring interest for one with the standard bracket and one with the special one.
(Marked as sold/completed by DjCook)

Last edited by a moderator:

MJFletcher

Member
Rating - 100%
3   0   0
Joined
Apr 3, 2021
Posts
80
Country
United Kingdom
Region
West Midlands
Declaring interest.
Declaring interest please. Single unit with standard bracket.
(Marked as sold/completed by DjCook)

Last edited by a moderator:

Bladejack

Active member
AmiBayer
Blogger
Rating - 100%
45   0   0
Joined
Jan 31, 2017
Posts
440
Country
Ireland
Region
Donegal
Declaring interest. Qty One card with Network/audio breakout Module

Update 31st Dec - Payment sent, thanks
(Marked as sold/completed by DjCook)

Last edited by a moderator:

Puppetmaster

Member
Rating - 100%
33   0   0
Joined
Oct 3, 2018
Posts
228
Country
Germany
Region
Germany
Declaring interest.

Declaring interest. One card with Network/audio breakout Module
(Marked as sold/completed by DjCook)

Last edited by a moderator:

Glabaden

New member
Rating - 100%
2   0   0
Joined
Sep 8, 2019
Posts
11
Country
France
Region
Rhône-Alpes
Declaring interest.
Declaring interest. One card with Network/audio breakout Module
(Marked as sold/completed by DjCook)

Last edited by a moderator:

Mokry

Active member
Rating - 100%
20   0   0
Joined
Nov 3, 2020
Posts
290
Country
Ireland
Region
Sligo
Declaring interest.
(Marked as sold/completed by DjCook)

Last edited by a moderator:

Xanxi

Well-known member
AmiBayer
Blogger
Rating - 100%
142   0   0
Joined
Jun 10, 2010
Posts
2,376
Country
France
Region
Paris
Declaring interest.
in version with the audio breakout. How does the other audio connect to it exactly?
(Marked as sold/completed by DjCook)

Last edited by a moderator:

gewse2k

Member
Rating - 100%
4   0   0
Joined
Oct 11, 2023
Posts
34
Country
The Netherlands
Region
South-Holland
Declaring interest.
for the card with Network/audio breakout Module
(Marked as sold/completed by DjCook)

Last edited by a moderator:

Boing-ball

Active member
AmiBayer
Blogger
Rating - 100%
11   0   0
Joined
Nov 17, 2023
Posts
367
Country
United Kingdom
Region
London
Declaring interest.

With Network Breakout Module for A4000. PM sent as per rules.
(Marked as sold/completed by DjCook)

Last edited by a moderator:

DjCook

8 Bit Dreams
Blogger
Rating - 100%
317   0   0
Joined
Apr 25, 2016
Posts
2,401
Country
Germany
Region
Bavaria

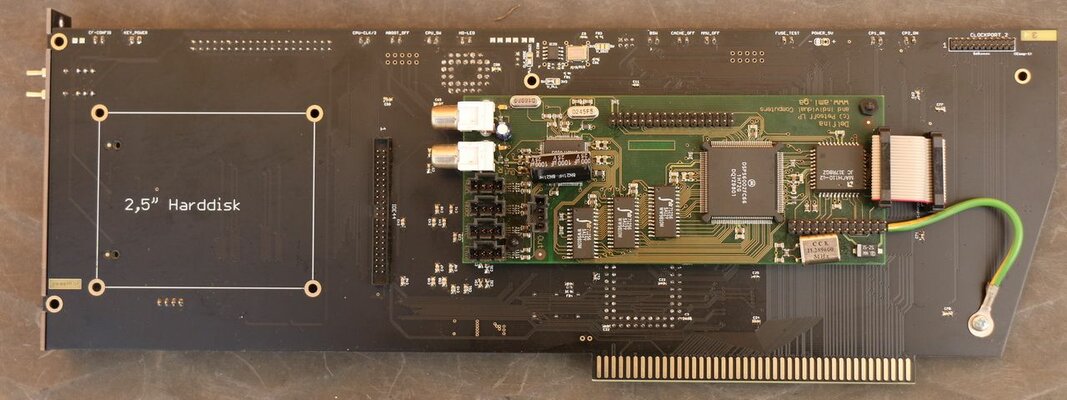

Well, it was actually designed to connect Delfina Sound card that is usually mounted on the backside of the Dicke Olga:
