I'm interested in two assemble d units. Will send two agnus chips

Hi there!

First of all, please, understand that this project is done during my spare time. I'm not a businessman... Thanks a lot!

Here is the launching of the Megachip project for the A500. The particularity of this version is the connection method.
Habitually, the Megachip is plugged in the PLCC support of the AGNUS chip of the Amiga motherboard.
To connect this new version, the PLCC support of the motherboard must be desoldered.

To intall the Megachip, two solutions:
- The Megachip is soldered directly onto the motherboard. This solution allow you to install an accelerator board in your A500!
- The Megachip is plugged onto a 84 pin PGA socket which is soldered on the motherboard. With this solution, the Megachip isn't soldered on the motherboard.
But the use of an accelerator is not possible due to the height of the Megachip.

The use of the Megachip works fine in an A500 rev6. I actually don't know if it's possible to use it on other revision of A500. I have to take a look at the pinout of the AGNUS used on older revision of the A500.

Here, some pictures of the Megachip installed into an A500 rev6:

View attachment 122685 View attachment 122683 View attachment 122684


The Megachip plugged on a PGA socket:

View attachment 122686 View attachment 122687

The Megachip will be delivered with all components, except the FAT AGNUS chip.

The amount (excluding shipping cost):

From now, I'm forced to accept payment only as GIFT. I'm sorry, but if you're from a country where paypal doesn't accept GIFT transfert, I will not able to accept your interest. I really sorry for the inconvenience.

- As kit: 30€. This will include the PCB, the components and the 84 pins.
- Assembled (without FAT AGNUS): 40€. If you are not able to solder the FAT AGNUS chip, you will have the possibility to send it to me. I'll solder it for you. The megachip will be tested before the shipment.

The amount could be lower if enough people declare their interest. In fact, the higher the number of PCBs manufactured, the lower the unit price.

For the beginning, I have ten PCB available. Five of them are available here, the other five boards will be available for members of an another Amiga forum.
I have the components to assemble four Megachip boards.
I have ordered more RAM and GAL chips for the assembling of a total of 20 more megachips. I'm waiting for them.

For this first mini launching, you can declare your interest for only one board. Like that, more people will have the possibility to own a Megachip.

One Megachip has been reserved by piacc64, one by mattsoft, and one by keith1. Actually, two boards available if piacc64, mattsoft and keith1 confirm their interest.
So, for now, only two PCB are available. But, even if they are all reserved, you can declare your interest for the next production of PCBs.


Which AGNUS do you need?

The board is designed for the AGNUS 8375. It has been tested with the revision 390544-01 (PAL). As the pinout of all 8375 revisions are the same, the Megachip should run with all of them. List below from a post of fordav1:

Agnus (2MB) 8375 R0 318069-18 A500+ (PAL), A600 (PAL)
Agnus (2MB) 8375 R2 318069-10 A500+ (PAL), A600 (PAL)
Agnus (2MB) 8375 318069-11 A500+(NTSC) and A600(NTSC)
Agnus (2MB) 8375 318069-19 A3000 (NTSC), A3000T (NTSC)
Agnus (2MB) 8375 390544-01 A500+ (PAL), A600 (PAL)
Agnus (2MB) 8375 390544-02 A500+ (NTSC), A600 (NTSC)


Onto which Amiga this board works?

The design has been made of the A500 rev6 motherboard.
The electronic design works onto the A2000 but the geometry design is not adapted for this computer.
The routing for the A2000 version is done.


Shipping cost:

International with track number: (Max height of the package: 3 cm)
[TABLE="class: cms_table_grid, width: 500"]
[TR]
[TD]Weight up to:
[/TD]
[TD="align: center"]100g[/TD]
[TD="align: center"]250g[/TD]
[/TR]
[TR]
[TD]France
[/TD]
[TD="align: center"]1.86€[/TD]
[TD="align: center"]3.32€[/TD]
[/TR]
[TR]
[TD]Europe[/TD]
[TD="align: center"]5.40€[/TD]
[TD="align: center"]8.70€[/TD]
[/TR]
[TR]
[TD]World[/TD]
[TD="align: center"]5.80€[/TD]
[TD="align: center"]9.70€[/TD]
[/TR]
[/TABLE]



International with track number & registered: (begin with 0 to 500g...)
[TABLE="class: cms_table_grid, width: 500"]
[TR]
[TD]Weight up to:[/TD]
[TD="align: center"]250g[/TD]
[TD="align: center"]500g[/TD]
[/TR]
[TR]
[TD]France[/TD]
[TD="align: center"]4.90€[/TD]
[TD="align: center"]6.10€[/TD]
[/TR]
[TR]
[TD]Europe (Zone A - European Union, Switzerland)[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]12.15€[/TD]
[/TR]
[TR]
[TD]World Zone B (Norway, Eastern Europe except Russia)[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]16.20€[/TD]
[/TR]
[TR]
[TD]World Zone C (Other destinations)[/TD]
[TD="align: center"]-[/TD]
[TD="align: center"]23.70€[/TD]
[/TR]
[/TABLE]



Interested members:(First mini batch)

[TABLE="class: grid, width: 600"]
[TR][TD]Interested members:[/TD][TD="align: center"]AGNUS
include in the kit![/TD][TD="align: center"]Ready for shipping[/TD][TD="align: center"]PM[/TD][TD="align: center"]Paid[/TD][TD="align: center"]Posted![/TD][/TR]
[TR][TD]piacc64 (Italy)[/TD][TD="align: center"]YES (P)[/TD][TD="align: center"]YES[/TD][TD="align: center"]YES[/TD][TD="align: center"][/TD][TD="align: center"][/TD][/TR]
[TR][TD]mattsoft (USA)[/TD][TD="align: center"]YES (P)[/TD][TD="align: center"]YES[/TD][TD="align: center"]YES[/TD][TD="align: center"]YES[/TD][TD="align: center"]YES[/TD][/TR]
[TR][TD]keith1 (UK)[/TD][TD="align: center"]YES (P)[/TD][TD="align: center"]YES[/TD][TD="align: center"]YES[/TD][TD="align: center"]YES[/TD][TD="align: center"]YES[/TD][/TR]
[TR][TD]holzroller (Germany)[/TD][TD="align: center"]YES (P)[/TD][TD="align: center"]YES[/TD][TD="align: center"]YES[/TD][TD="align: center"]YES[/TD][TD="align: center"]YES[/TD][/TR]
[TR][TD]Pgovotsos (USA)[/TD][TD="align: center"]YES (P)[/TD][TD="align: center"]Assembled[/TD][TD="align: center"][/TD][TD="align: center"][/TD][TD="align: center"][/TD][/TR]
[/TABLE]


Reservation for second batch:

The production of the PCBs will be launched when I'll have received the RAM and GAL ICs I have ordered.


[TABLE="class: grid, width: 500"]
[TR]
[TD]Member[/TD]
[TD="align: center"]number[/TD]
[TD="align: center"]kit[/TD]
[TD="align: center"]Assembled[/TD]
[TD="align: center"]AGNUS
provided by member[/TD]
[TD="align: center"]AGNUS
include in the kit![/TD]
[/TR]
[TR]
[TD]Pgovotsos (USA)[/TD]
[TD="align: center"]5[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"]YES[/TD]
[/TR]
[TR]
[TD]Gravislord (USA)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]EzdineG (USA)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]Schuimpy (The Netherland)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"]YES (P)[/TD]
[/TR]
[TR]
[TD]Kirk_m (USA)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"]YES (P)[/TD]
[/TR]
[TR]
[TD]freaktmp (Greece)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"]YES[/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]fordav1 (Australia)[/TD]
[TD="align: center"]2[/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]timtheloon (UK)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]bobymiller (Germany)[/TD]
[TD="align: center"]2[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"]YES[/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]el_pasi (Finland)[/TD]
[TD="align: center"]2[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"]YES (P)[/TD]
[/TR]
[TR]
[TD]cktwo (Germany)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"]YES (P)[/TD]
[/TR]
[TR]
[TD]tbtorro (Denmark)[/TD]
[TD="align: center"]2[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"]YES[/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]dallyis (Ireland)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"]YES (P)[/TD]
[/TR]
[TR]
[TD]Neraka (Denmark)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"]YES (P)[/TD]
[/TR]
[TR]
[TD]raparici (Spain)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"]YES[/TD]
[/TR]
[TR]
[TD]voyager_1701e (Australia)[/TD]
[TD="align: center"]2[/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"]YES (P)
for one[/TD]
[/TR]
[TR]
[TD]Miru (USA)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"]YES[/TD]
[/TR]
[TR]
[TD]Juzz (Denmark)[/TD]
[TD="align: center"]4[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"]YES (P)[/TD]
[/TR]
[TR]
[TD]Surfer (Italy)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"]YES[/TD]
[/TR]
[TR]
[TD]heldma1m (Germany)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"]YES (P)[/TD]
[/TR]
[TR]
[TD]Rupture (Austria)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]viserys23 (Norway)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"]YES[/TD]
[/TR]
[TR]
[TD]crazybob_br (Norway)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]AMike (Austria)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]Doda (Czech Republic)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]ishe (Hungary)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]Raybeez (Poland)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]britlord (USA)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]Acill (USA)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]McTrinsic (Germany)[/TD]
[TD="align: center"]3[/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]THW (Germany)[/TD]
[TD="align: center"]3[/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]Calvacanti (Germany)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]gebes (UK)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"]YES[/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]Total[/TD]
[TD="align: center"]50[/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[/TR]
[/TABLE]

Reservation for third batch:

The production of the PCBs will be launched when the second batch will be closed.


[TABLE="class: grid, width: 500"]
[TR]
[TD]Member[/TD]
[TD="align: center"]number[/TD]
[TD="align: center"]kit[/TD]
[TD="align: center"]Assembled[/TD]
[TD="align: center"]AGNUS
soldered by member[/TD]
[TD="align: center"]AGNUS
Provided by member[/TD]
[/TR]
[TR]
[TD]Bprepared (UK)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]kgthomps (USA)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[/TR]
[TR]
[TD]timtheloon (UK)[/TD]
[TD="align: center"]2 (CDTV)[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[/TR]
[TR]
[TD]CrazyBob (The Netherlands)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[TD="align: center"]x[/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]km-l (Poland)[/TD]
[TD="align: center"]1[/TD]
[TD="align: center"]x (CDTV)[/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[/TR]
[TR]
[TD]Total[/TD]
[TD="align: center"]6[/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[TD="align: center"][/TD]
[/TR]
[/TABLE]



[ramparts]

If he free or not I think is not the issue here.
What is important is some feedback and when is going to start with the orders again

Best Regards

I'm sorry but if someone is having real world issues/problems I think the last thing on their mind would be the Amiga world taking preference

I dont understand your urgency have you paid for it already?

No i don´t payed already and if i declare interest is because i whant now not in the next year.
Appart from that everybody has personal problems and is not because of that ,i answer to my commitments.
if i can take projects ahead i answer if not i just say not available anymore simple as that.

Regards



[8 Bit Dreams]

No i don´t payed already and if i declare interest is because i whant now not in the next year.
Appart from that everybody has personal problems and is not because of that ,i answer to my commitments.
if i can take projects ahead i answer if not i just say not available anymore simple as that.

Regards

please keep calm, no need to escalate and hijack this thread..

Dear ramparts, please don't forget - Tuxbar makes these boards as a hobby project, these are built on demand, this isn't a commercial stuff...
If You need this expansion as fast as possible, maybe You should open a "Wanted" topic!?
i am sure, You'll find a person who will offer it to You (because of financial problems, family decisions or any other reason)...
with respect,

-Viktor



[ramparts]

Hi DjCook

I replyed with calm and respect to the facts ,or arguments presented.

Yes maybe i will open a wanted thred

Regards



[Tuxbar81]

Hi everybody!

First of all, all my apologies for my long absence due to some personal reasons (surgery of my wife and important changes in my professional life).
I know that there were some PM posted here. I'll try to read all of them. But, a friend of mine has let me know that someone here has said that I should give the source files of my projects. Yes, I could. But no, I'm not going to give them. No way. And I'm going to explain why with a simple and purely fictive example (as they say in cinema production!).

Once upon a time, a cool guy who developped a really cool board for the coolest computer of the world. Because he is a very cool guy, he decided to upload the source files of his project on his prefered forum to allow everybody to make this really cool board by themself.
But, it was not counting on the venality of a dark member of the forum who began to produce this (really cool, yes, yes!) board to make a maximum of money.

Do you find this situation logical?No? Me too. Evidently and fortunately, this sad story is a pure fiction. Something like that wouldn't be possible here, where the Jedis (moderators) of Amibay are ensuring the protection of the members' passion.

About the Megachip for the A500, I have tested to route a version for using a hole-PLCC socket. I don't like the result. I'll stay onto the smd version of this board.

About the Megachip for the A2000, I have produced some pcb. I have assembled one of them (with a really professional attention...). I can annonce here that this version works perfectly!

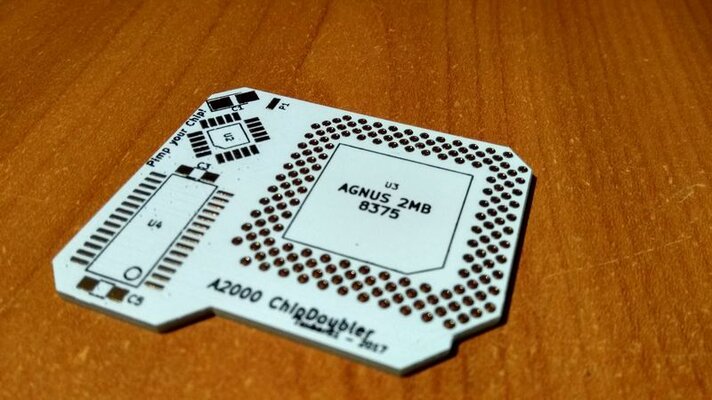

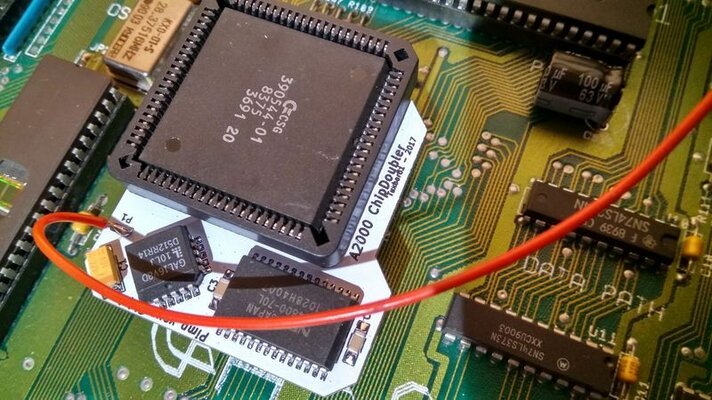

Here, you can see some pictures of the A2000 version of the megachip:



For this version I have found the high quality PLCC socket (3M) for a very good price. I have bought 57 pieces... all the stock of the seller.

Somebody, who is member of Amibay, has contacted me on my email to proposed me some AGNUS chips also for an interesting amount (15€/piece). As usually, I'll make no profit on them. Perhaps I'll have to count the custom taxe if I can't avoid it. I should have between 40 to 50 pieces. I want here to thanks a lot this member for his kindness.
It's not the last revision, but it's a really better price than the ones proposed by a dark member here who has contacted me by PM to proposed me his "secret" stock as he said for the really friendly price of around 30€/piece... Voilà voilà.

I have to verify, but the A2000 version should be sold assembled for the same price as the A500 version. Always low price to be accessible for everyone! High price doesn't mean professional quality, and low price doesn't mean amateur quality.

Again, sorry for this long silent, I would have preferred it to be otherwise.

Best regards,
Franck.

- - - Updated - - -

I have seen that I have 26 PM which are waiting me... Some hours in perspective!



[Timtheloon]

Can I add a A2000 model to my list with an Angus please


ramparts will be happy you’re back too



[ramparts]

Can I add a A2000 model to my list with an Angus please


ramparts will be happy you’re back too

Only happy when i got my pm with ready to sent your order...



[Tuxbar81]

Can I add a A2000 model to my list with an Angus please

I have to open a For sale thread before!

ramparts will be happy you’re back too

Indeed, I think I guess, but I read he wanted to open a wanted thread, so perhaps he will not be happy...



[Timtheloon]

Understood starting a separate thread for the A2000 model



[Tuxbar81]

Will be open soon. I have to read all the kind posts here and the 26 PMs before! ;-)



[Astor]

Hi

Declaring interest in one unit Please.



[Tuxbar81]

Hello,

I want to thank some members as DjCook, kirk_m and the last but not the least, my friend Pgovotsos for the positive posts they sent here!

@ramparts, as you seem to be so hurry, I confirm that the best way for you is to open a wanted thread.

For information: the next batch of pcb will arrive at the end of February since Elecrow is closed for spring vacation & Chinese new year...
Not cool, but that will let me time to answer to all PM I received and to update the table of the first post of the thread.



[Acill]

Tux, keep up the great work and I REALLY am looking forward to getting at least one of these!!!



[Aussielegend]

Seems i am always late to see these fun bits.

Can i still register interest?



[optiguy]

Can't wait to get one of these, hope they will be avaliable soon

Sent from my SM-G930P using Tapatalk



[a500guy]

I'm very interested. Hopefully you will have boards to sell soon. I will buy a kit or assembled...basically whatever you have to sell. I'm sending PM



[limboy777]

Hi Tuxbar, I sent my interest here for assembled units but Im not on the list. If you can put me down for two assembled ones for my CDTV and I will provide the two agnus chips.



[elfoam]

This is awesome, can I get one? maybe two
